Hinged Doors & Windows

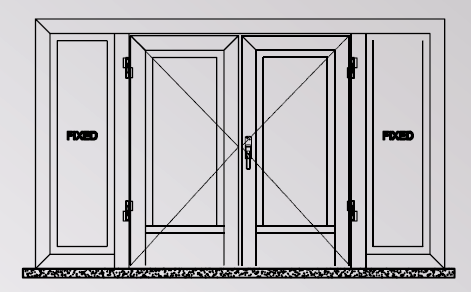

We offer a comprehensive selection of Hinged systems that cater to various projects and building types, encompassing residential, commercial, traditional, and contemporary applications. Our range includes different types of Side-hinged or Tilt & Turn doors and windows, all engineered to deliver supreme performance. Regardless of the specific requirements, our Hinged systems provide reliable and high-quality solutions for any construction project.

GULFEX TB600 Series

Description

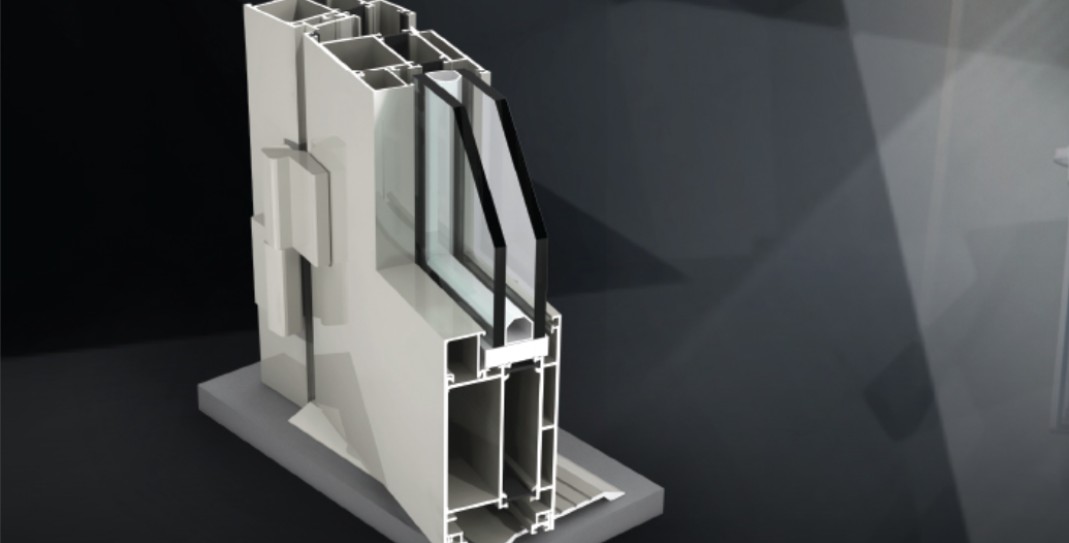

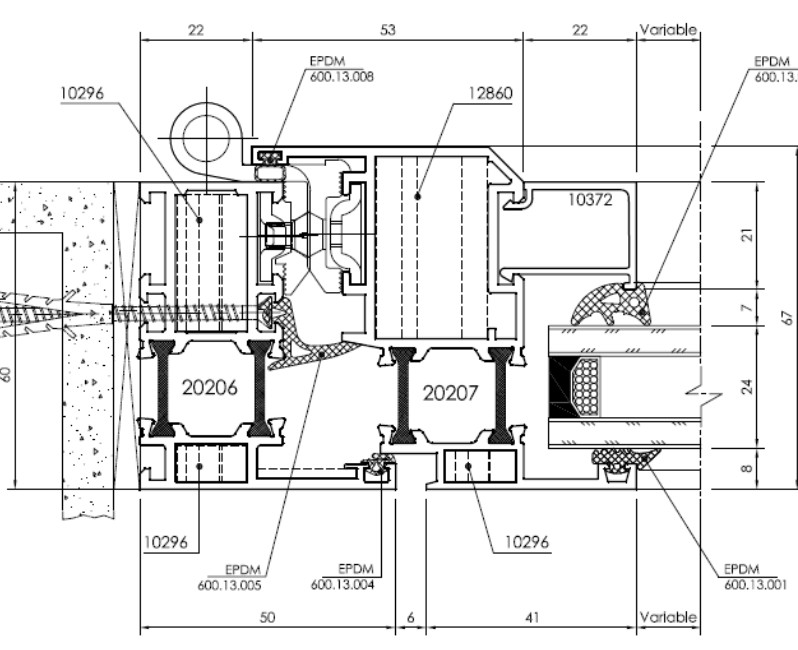

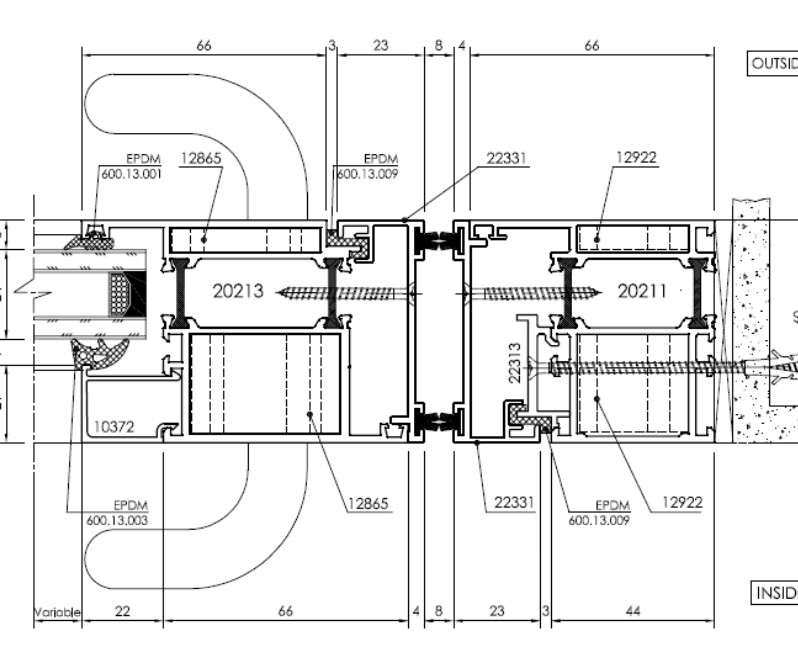

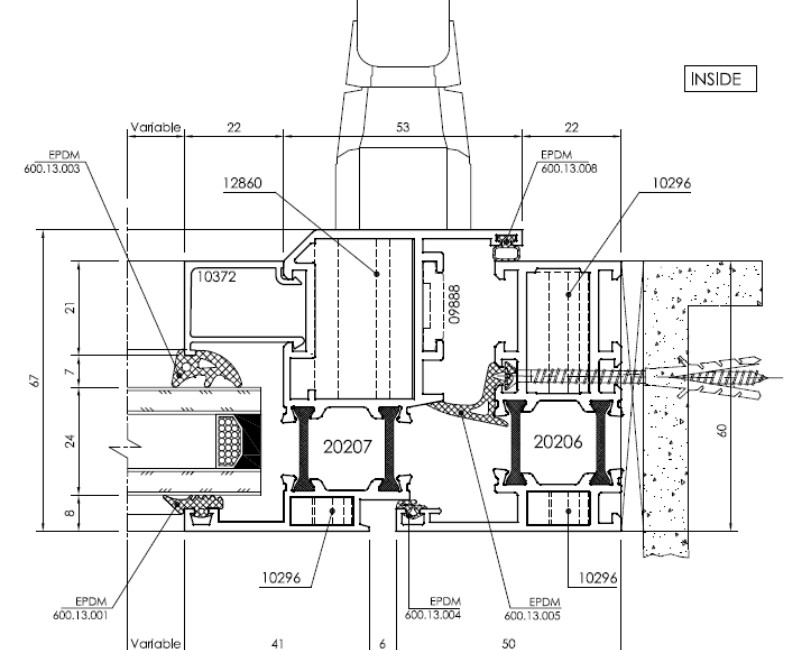

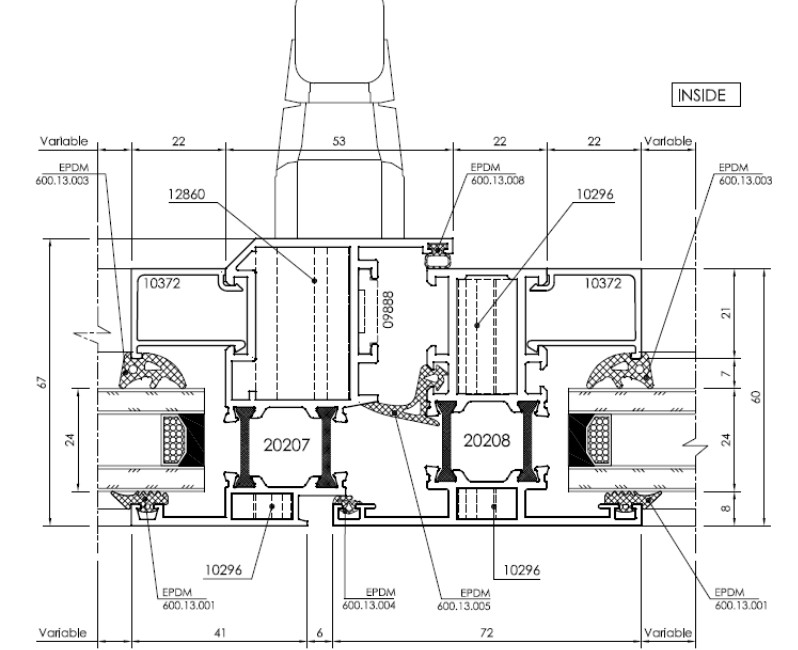

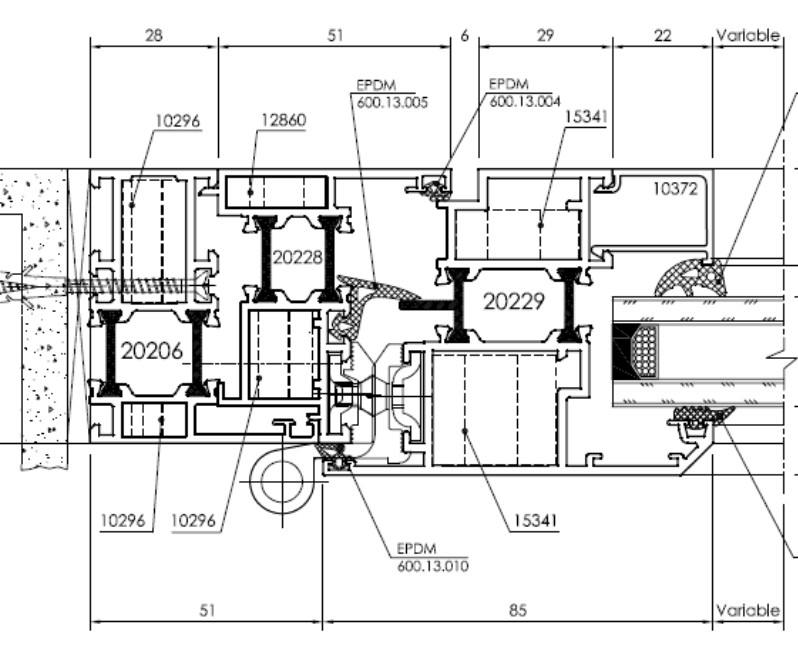

TB 600 Thermal break and Hinged system is a unique, elegant 60mm width frame designed to achieve better performance with a wide variety of frames available to cover the needed applications. It is designed for heavy-duty use (H-HC40) according to the American National Standard. All profiles are available in all colors in order to meet today’s architectural requirements, along with the possibility of bi-coloration due to the separation done by the thermal break strips.

Advantages

Features glass – 18mm to 38mm
Frame Tubular with a width of 60mm
Sash Tubular straight with 60 or 67 mm thick

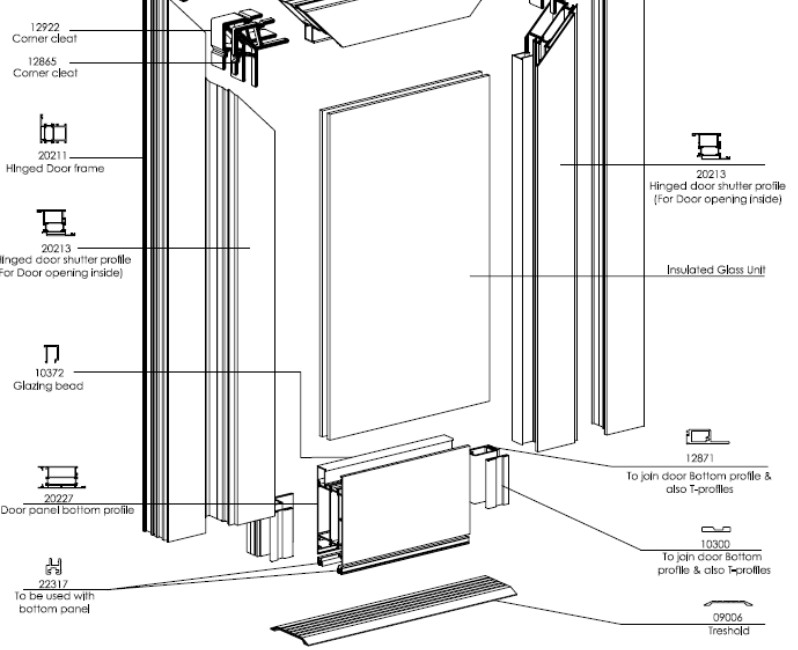

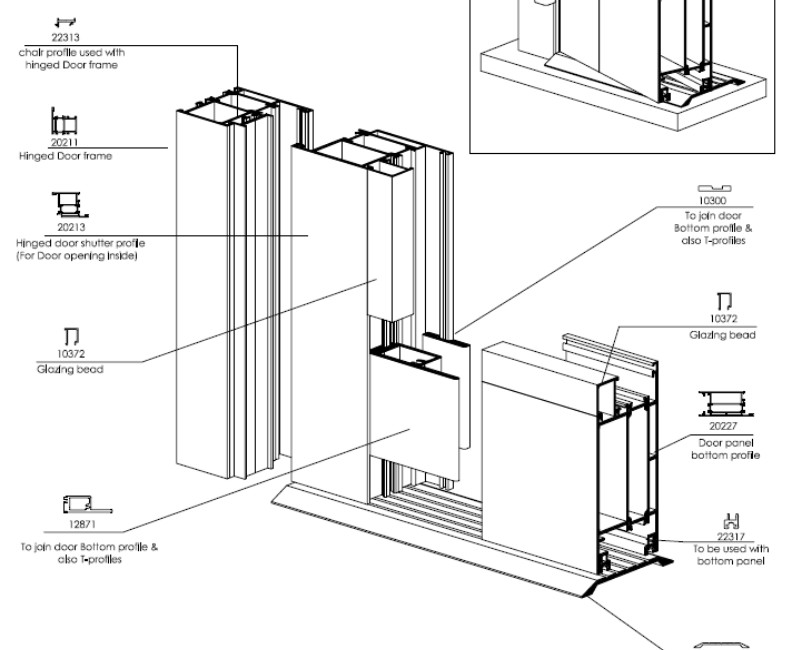

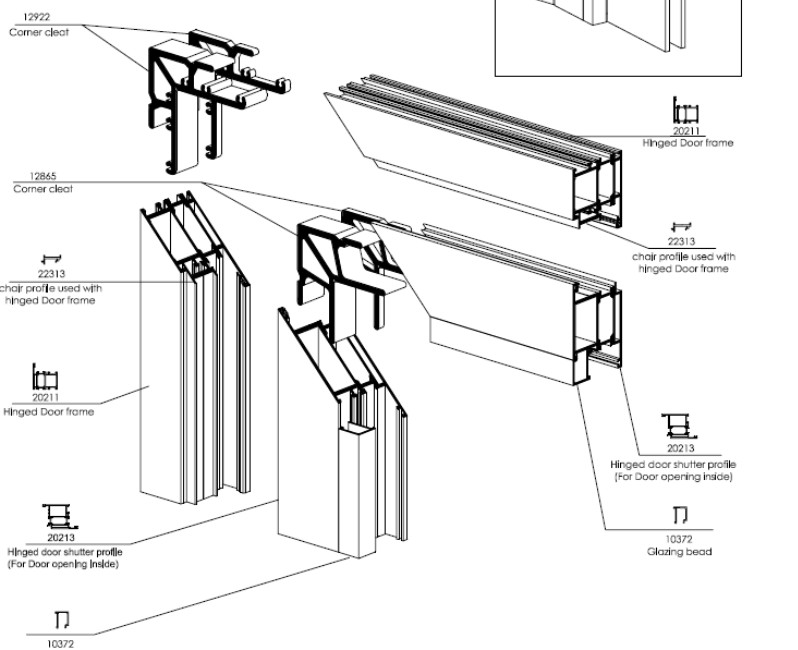

Assembly of the frames and sashes is done by 45° cut whereas the door bottom on profiles are custom 90°.
Glazing Standard or insulating ranges from “18 to 27”mm
Sealing is achieved by the compression of 3 EPDM gaskets pressured during closing
