ALUMIL SMARTIA M14600
Description
SMARTIA M14600 is ALUMIL’s brand new sliding system with extremely elegant lines, incorporating all the expertise of ALUMIL Group. It meets the modern architectural trends and the requirements for especially high performances and is the ideal solution for areas with warmer climate.
Advantages
-
Modern design
-
Enhanced natural light thanks to slim aluminium profiles
-
Good security level
-
Good sound insulation
-
High quality with certified performance
-
Vast variety of typologies
-
Special hotel solutions
- High functionality
Generic
WINDOW TYPES
Sliding
THERMAL INSULATION
Non-Thermal
EXTERIOR SHAPES
Curved, Flat
Characteristics
SASH WIDTH
35mm
SASH WEIGHT
Up to 180 kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
88.5mm

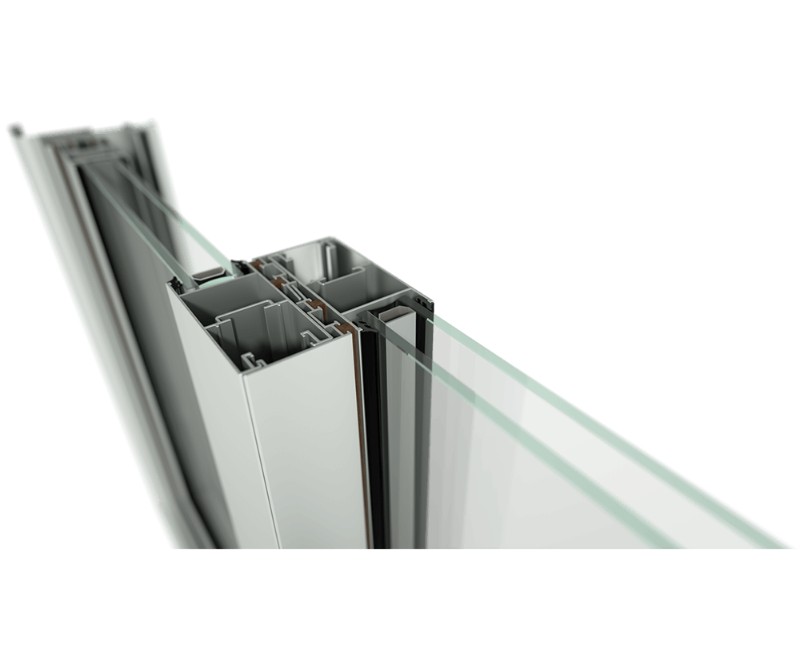

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
62mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
23mm
GLAZING TYPE
Single, Double
MAXIMUM GLAZING THICKNESS
up to 26mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Continuous perimetrical tri fin in two levels brush
TYPES OF TYPOLOGY
Horizontal sliding, Meeting stile, Pocket sliding, Multiple horizontal sliding
Performance
WATER TIGHTNESS
CLASS 7A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C2/B2
Typologies
Media Gallery

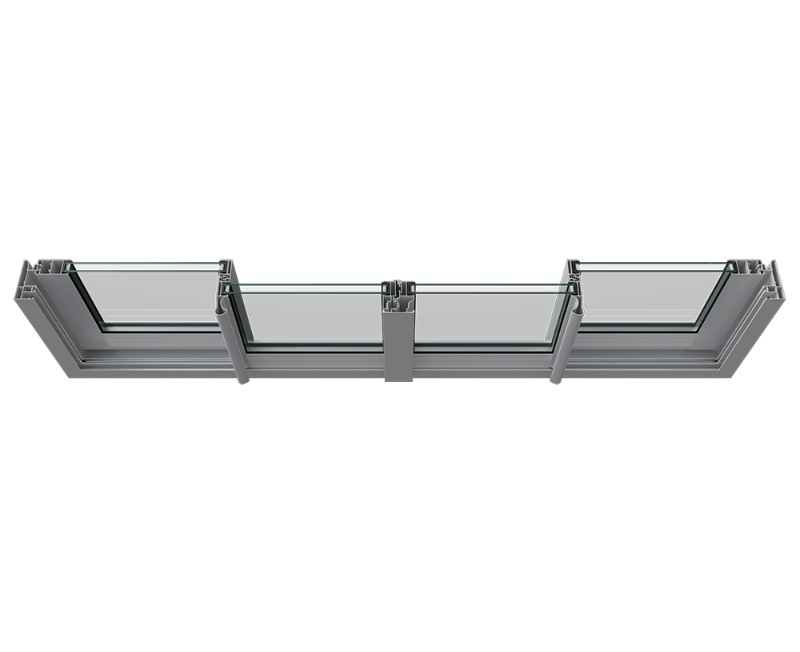

Sections
