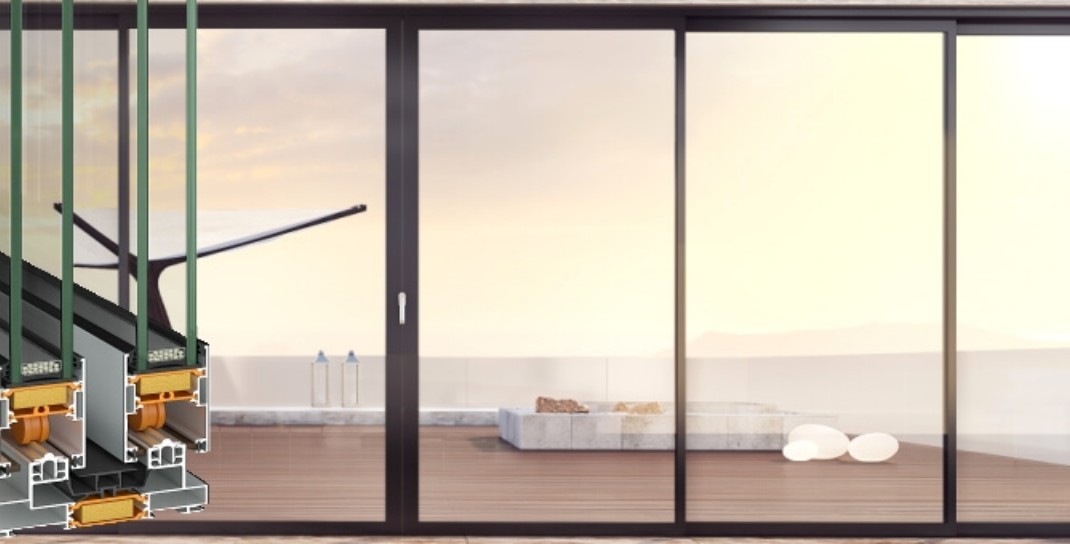

ALUMIL SMARTIA S440 Insulated
Description
SMARTIA S440 is an innovative insulated sliding system which incorporates all the modern architectural trends and the requirements for high energy-efficiency. It is an ideal option for the very demanding European market.
Advantages
-
Excellent value for money
-
High Energy Efficiency
-
Special solutions for Hotels
-
Large variety of alternative solutions
-
Competitive manufacturing costs due to reduced fabrication time
-
Increased level of security
-
High level of sound insulation
-
Sensitive natural lighting enhancement thanks to product design and large window frames
-
High quality with certified performances
- Increased static loads and functionality in case of severe weather conditions
Generic
WINDOW TYPES
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat
Performance
UF
from 1,5 to 5,0 W/m²K
AIR PERMEABILITY
Class 3
MAXIMUM GLAZING THICKNESS
up to 32mm
SASH DEPTH
44 mm
TYPES OF TYPOLOGY

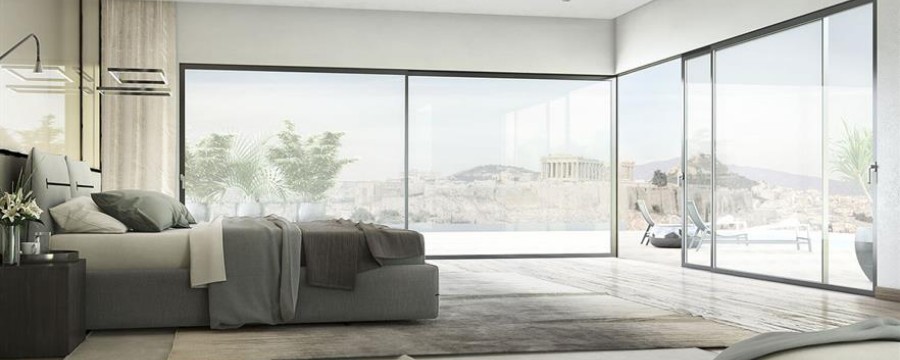

Horizontal sliding, Meeting stile, Pocket sliding, Corner sliding
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Continuous perimetrical tri fin in two levels brush
WATER TIGHTNESS
E750
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
111,5 mm

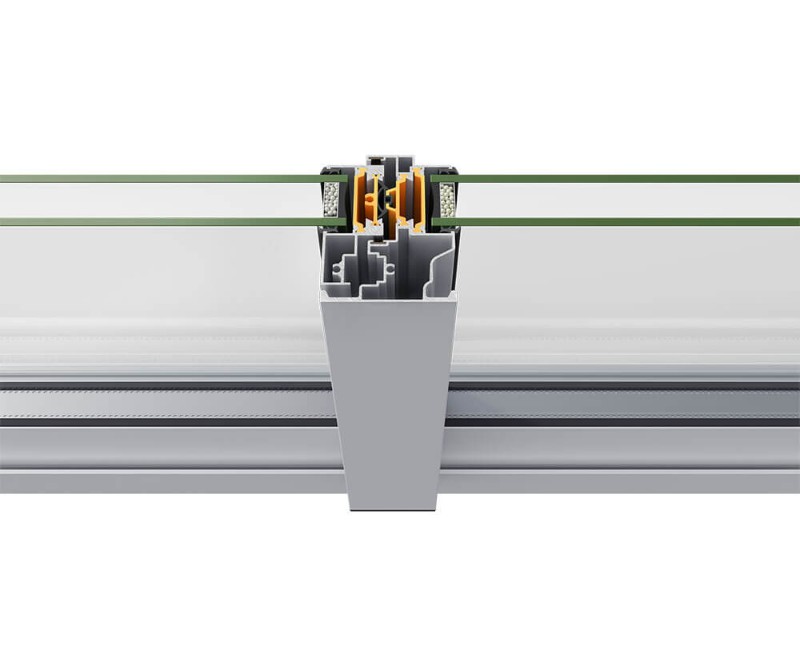

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
39 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
64 mm

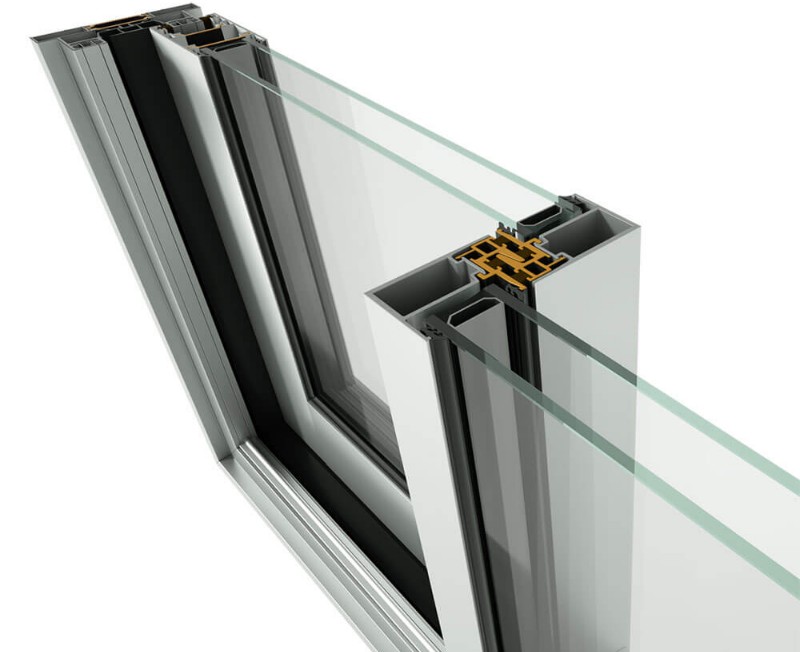

TYPE OF THERMAL INSULATION
Polyamides 40 mm & 32 mm, PVC parts
SASH WEIGHT
up to 180 Kg
GLAZING TYPE
Double
Typologies
Media Gallery

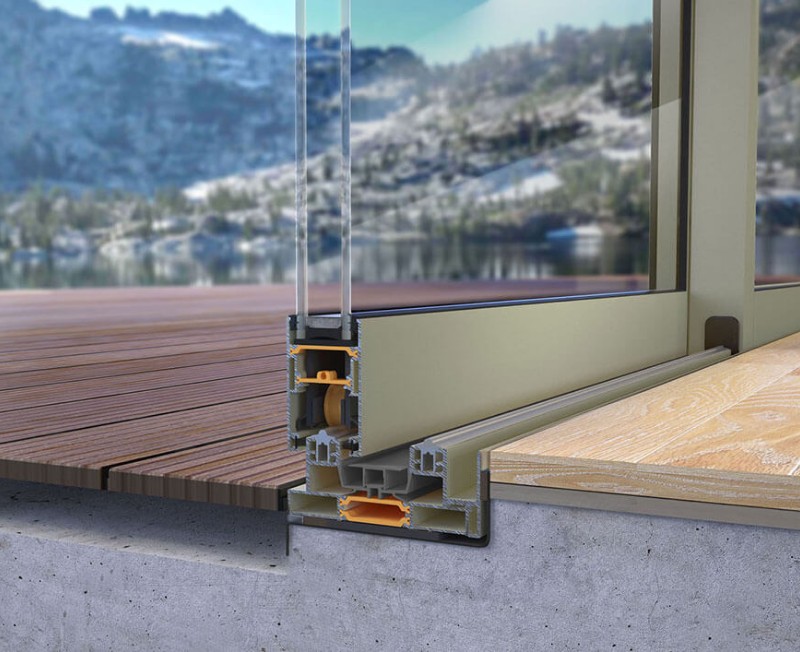

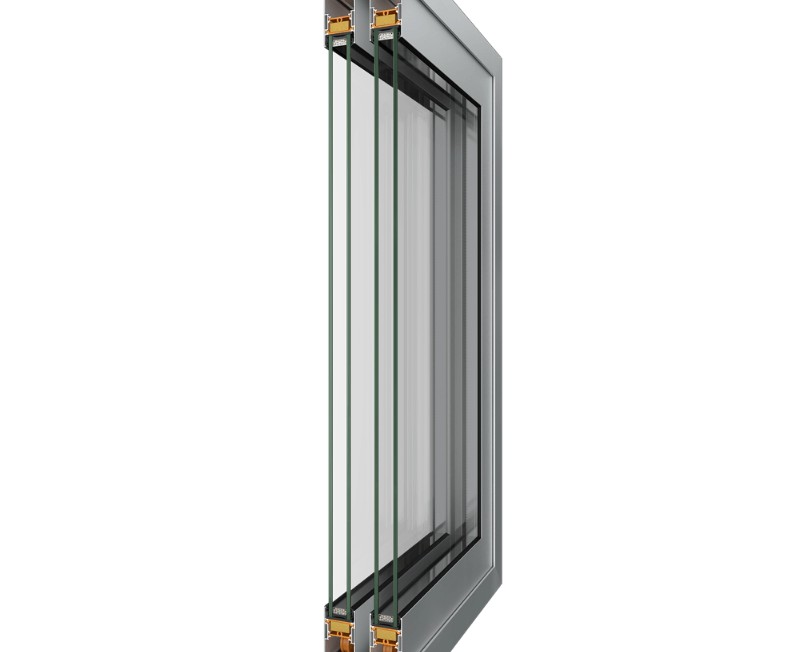

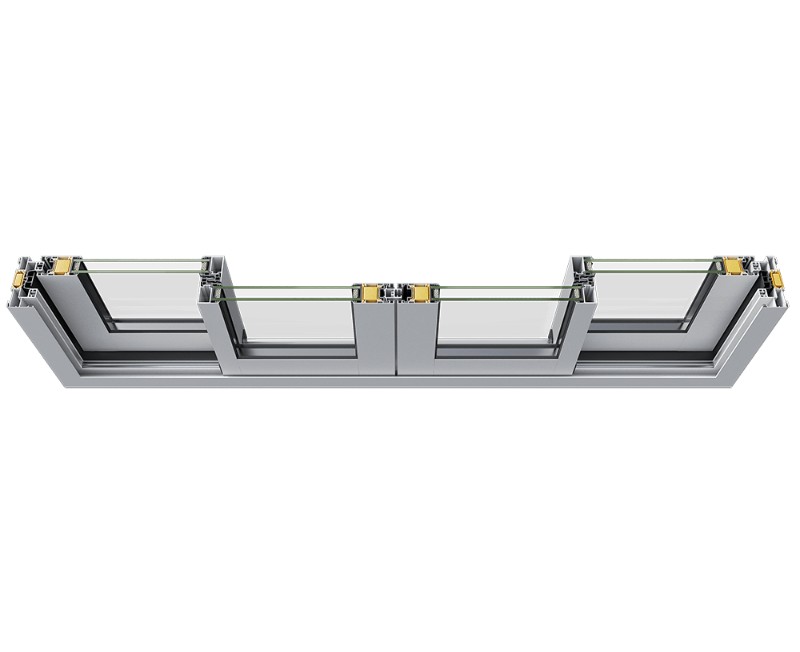

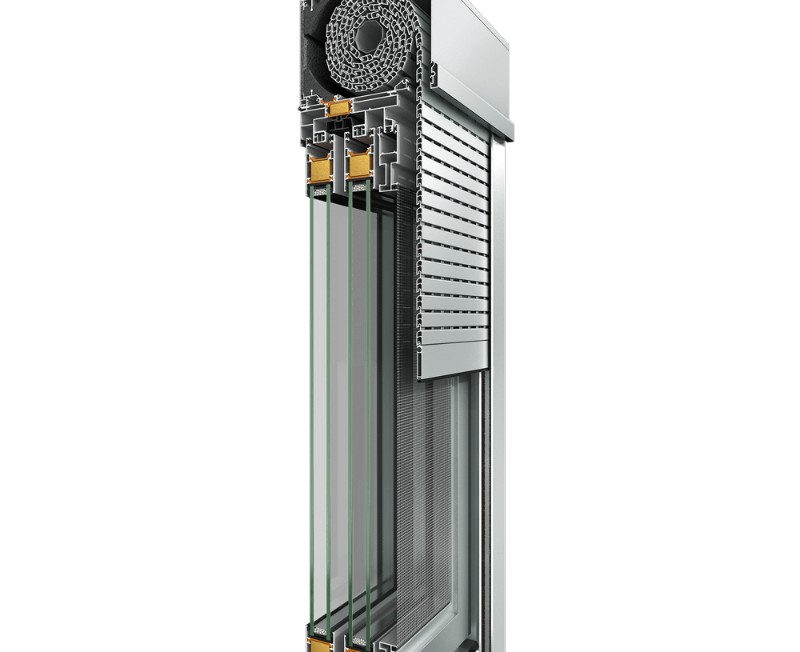

Sections
