ALUMIL SMARTIA M630 PHOS INSULATED
Description
The sliding system SMARTIA M630 PHOS offers a minimal touch in contemporary residences combining minimal design with high thermal performance. Following the “less is more” philosophy, all aluminium profiles can be hidden into the wall providing a total sense of comfort with top functionality and enhanced safety.
Advantages
-
Differentiating in the market through minimal systems, following the modern architectural trends
-
Increased clientele with minimal products ideal for hotel solutions & LSP
-
Easy installation & maintenance
-
Exceptional quality with certified performance
-
Wide variety of typologies
-
Specifications for children, the elders and people with special needs
- Maximum ease of use and high functionality
Generic
WINDOW TYPES
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPES
EXTERIOR SHAPES
SURFACE TREATMENTS
Wood sublimation , Anodizing colors, all powder coating
Characteristics
GLAZING TYPE
Double - Triple
SOUND REDUCTION
42dB
WATER TIGHTNESS
7A
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
44 mm
TYPE OF THERMAL INSULATION
Polyamides, PVC
AIR PERMEABILITY
3
SASH WEIGHT
up to 250 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
MINIMUM THRESHOLD HEIGHT
32 mm
SEALING METHOD
Perimetrical with tri-fin brushes
MAXIMUM GLAZING THICKNESS
32 mm
TYPES OF TYPOLOGY
Horizontal sliding sashes, Meeting stile, Combinations with fixed ligths
WIND LOAD RESISTANCE
C5
SASH DEPTH
63 mm
Uw
1,43 W/m²K
Media Gallery

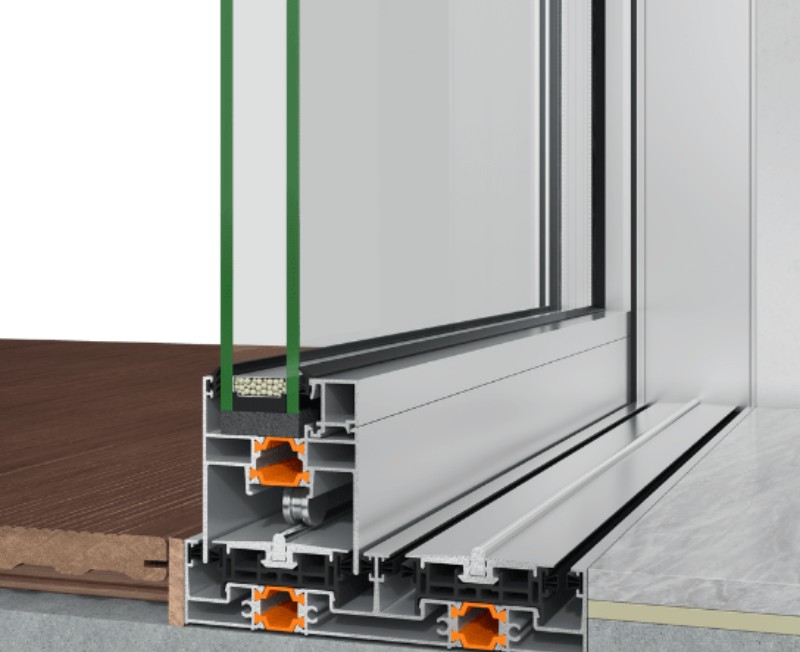

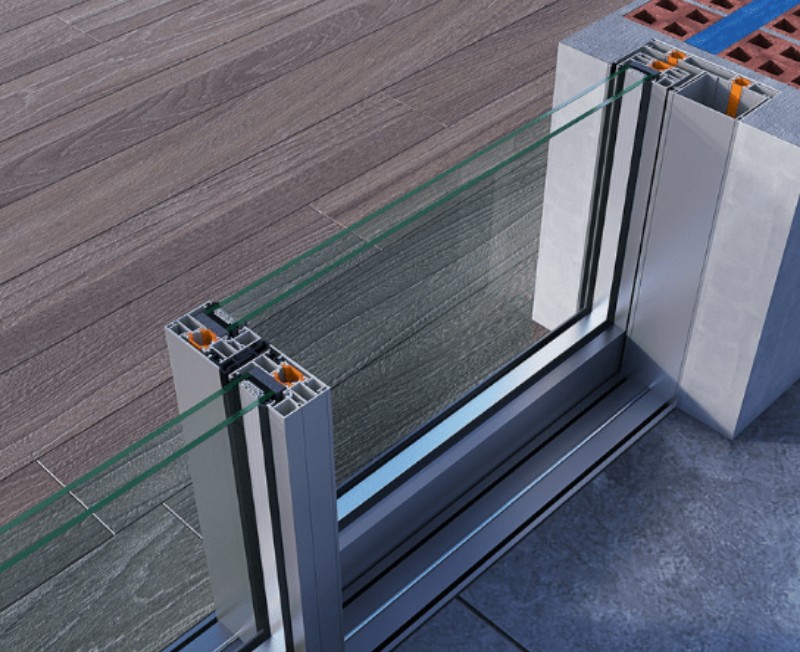

Sections
