Sliding Doors & Windows
Our range of Sliding Systems offers an excellent solution for maximizing space and seamlessly connecting indoor and outdoor areas. By incorporating our aluminum sliding doors and sliding folding doors, you can create expansive glazed areas that invite ample natural light into any room. These innovative systems effectively minimize barriers, allowing for a smooth transition between the interior and exterior spaces.
ALUMIL SMARTIA M900 Non-Insulated
Description
COMFORT M900 is the lightest sliding system for the lowest cost investment. Ideal proposal for low-cost solutions without compromising quality.
Advantages
-
Very good value for money
-
Flexibility in construction
-
Wide variety of typologies
-
Solutions for small spans
-
Special solutions for hotels
- Reduced fabrication time
Generic
WINDOW TYPES
Sliding
THERMAL INSULATION
No
EXTERIOR SHAPES
Curved
Characteristics
GLAZING TYPE
Single - Double
TYPES OF TYPOLOGY
Double and triple horizontal sliding sashes, Meeting stile, Pocket typologies
MECHANISM
Sliding mechanism
SASH DEPTH
28 mm
MAXIMUM GLAZING THICKNESS
From 4 mm up to 20 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
67,8 mm
SASH WEIGHT
up to 80 Kg
SEALING METHOD
Perimetrical with hi-fin gaskets
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
81 mm
Media Gallery

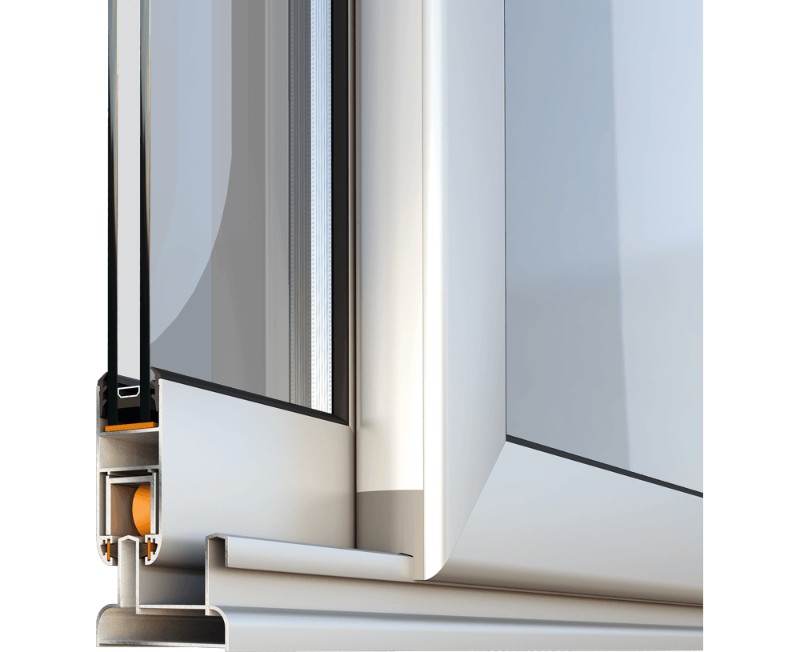

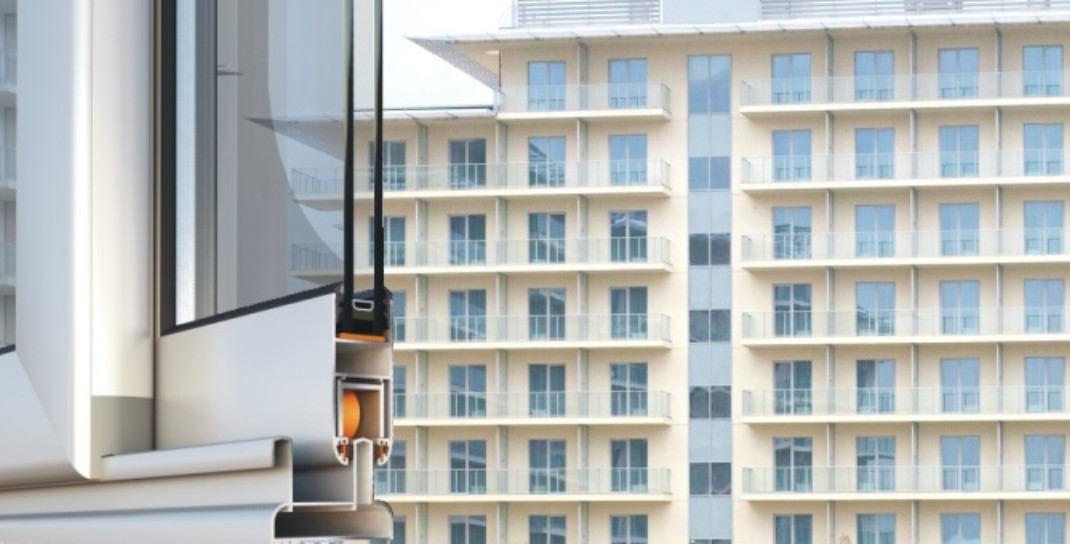

Sections
