ALUMIL SMARTIA M12500 PHOS Non-Insulated

Description

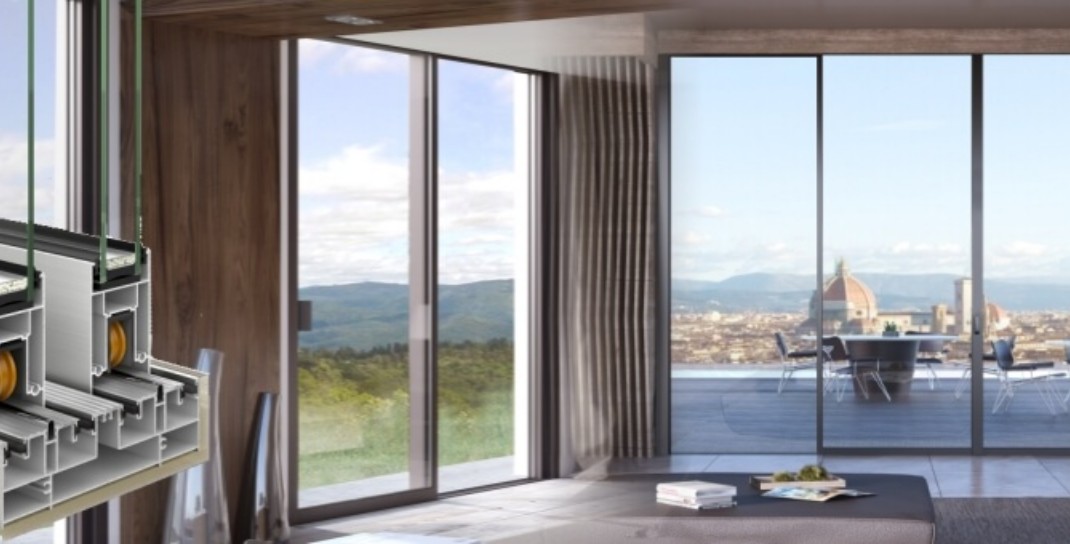

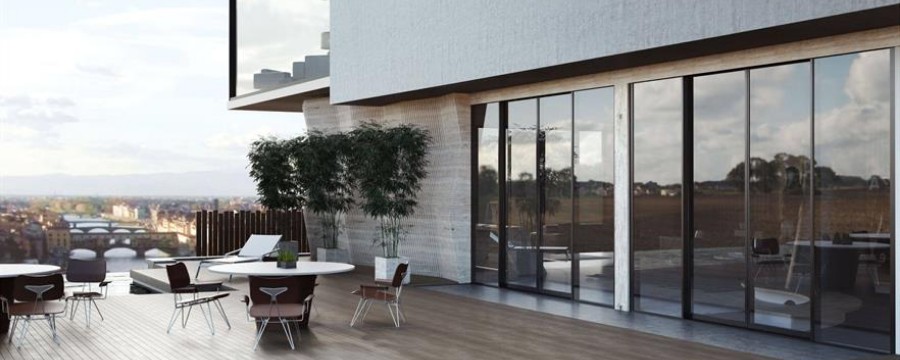

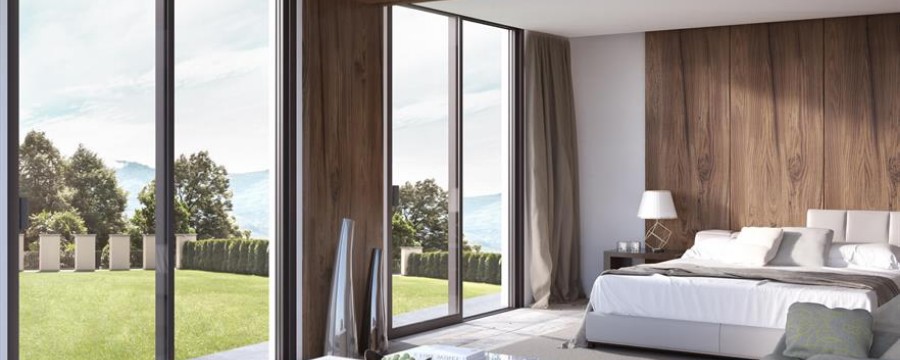

SMARTIA M12500 PHOS is the new ingenious sliding system of ALUMIL for minimal sliding frames, which maximize natural light. Its unique design is completely in line with the latest architectural trends.

Advantages

  • Excellent value for money
  • Special solutions for Hotels
  • Competitive manufacturing costs
  • Plenty of alternative solutions
  • Increased level of security
  • High level of sound insulation
  • Sensitive natural lighting enhancement thanks to product design and large window frames
  • High quality with certified framing performance
  • Increased static loads and functionality in case of severe weather conditions

Generic

WINDOW TYPES Sliding
THERMAL INSULATION No
EXTERIOR SHAPES Flat

Characteristics

WATER TIGHTNESS 6A
SASH WEIGHT up to 250 Kg
MECHANISM Perimetrical locking mechanism
MAXIMUM GLAZING THICKNESS up to 32 mm
SASH DEPTH 45 mm
GLAZING TYPE Single - Double
SEALING METHOD Continuous perimetrical tri fin in two levels brush
WIND LOAD RESISTANCE C2/B2
TYPES OF TYPOLOGY Horizontal Sliding, Meeting Stile
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE) 32 mm
AIR PERMEABILITY Class 4
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT 65,8 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) 72 mm
MINIMUM THRESHOLD HEIGHT optional with conceal sush
