ALUMIL SMARTIA S560 Insulated
Description

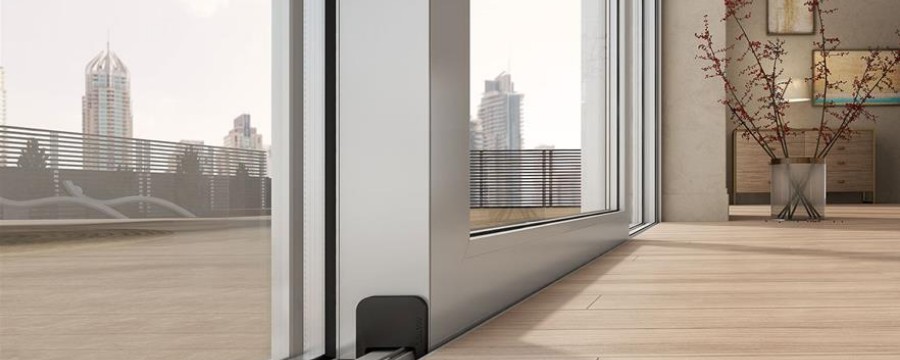

SMARTIA S560 is a robust insulated Liſt & Sliding system which provides high thermal performance, flexibility and is ideal for large openings.
Advantages
-
High Energy Efficiency
-
Special solutions for hotels
-
Competitive costs due to reduced fabrication time
-
High Energy Efficiency
-
Increased level of security
-
High level of sound insulation
-
Ease of use and high functionality
-
Sensitive natural lighting enhancement thanks to product design and large window frames
-
High quality with certified framing performance
- Increased static loads and functionality in case of severe weather conditions
Generic
WINDOW TYPES
Lift & Sliding
THERMAL INSULATION
Yes
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat
Characteristics
SASH WEIGHT
up to 300 Kg
AIR PERMEABILITY
Class 3
MECHANISM
Lift & slide mechanism
GLAZING TYPE
Double - Triple
WIND LOAD RESISTANCE
C4/B4
BURGLAR RESISTANCE
RC2
SASH DEPTH
56 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
50 mm
WATER TIGHTNESS
E750
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
122,5 mm
TYPE OF THERMAL INSULATION
Polyamides 24 mm into the frame & Polyamides 16 - 24 mm into the sash, PE insulation Foam, PVC parts
MAXIMUM GLAZING THICKNESS
22 up to 44 mm
SEALING METHOD
Continuous perimetrical tri fin in two levels brush and EPDM gasket
TYPES OF TYPOLOGY

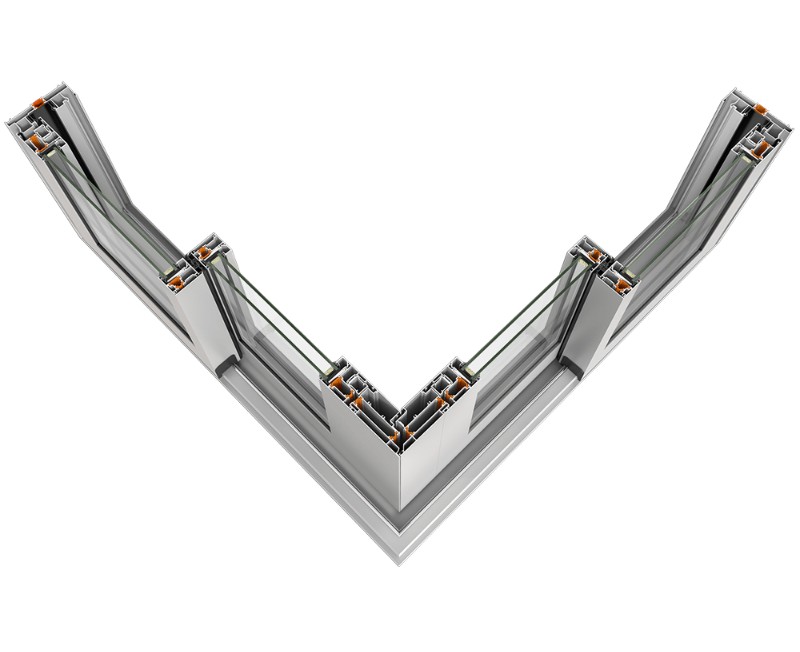

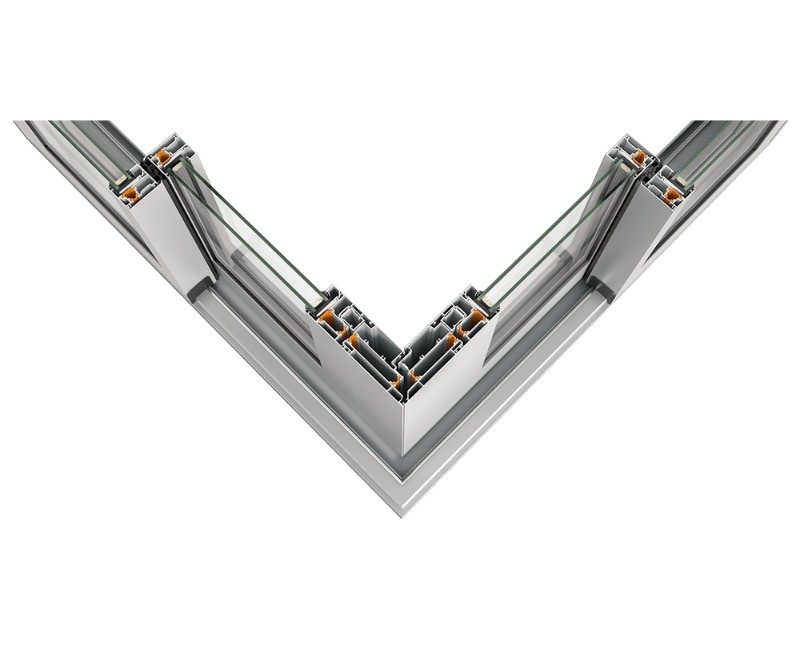

Parallel sliding, meeting style, Pocket Sliding, Corner Sliding
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
28 mm
MINIMUM THRESHOLD HEIGHT
31 mm
Typologies

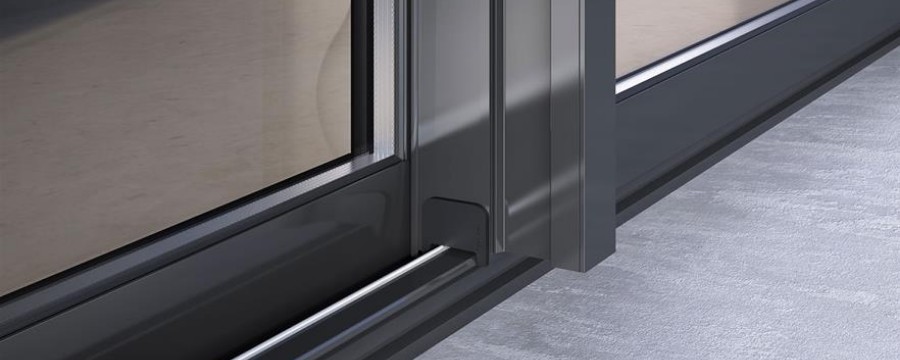

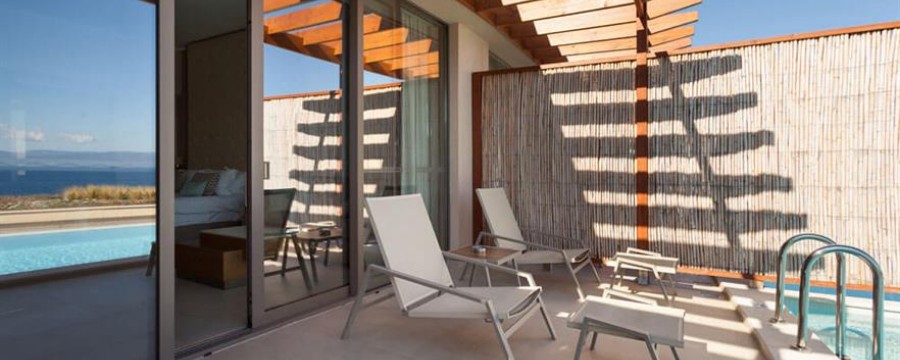

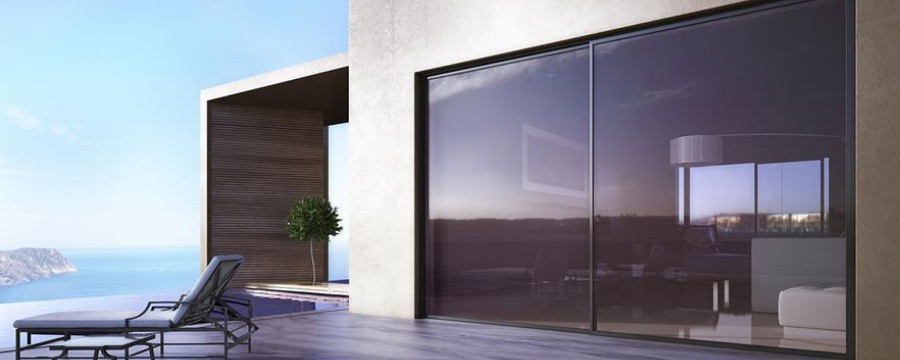

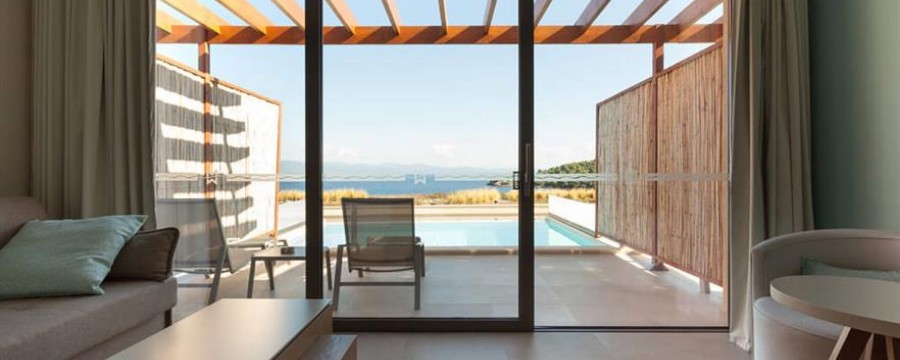

Media Gallery

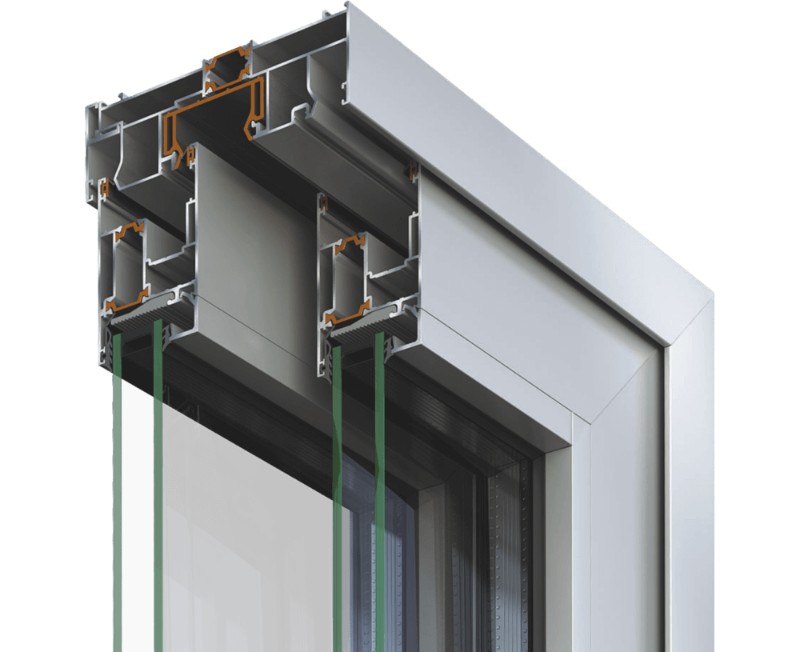

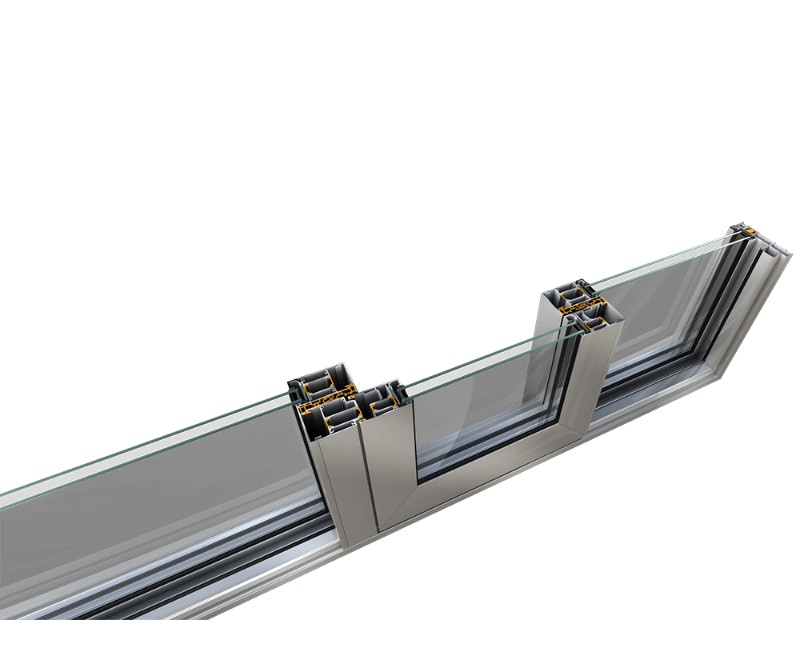

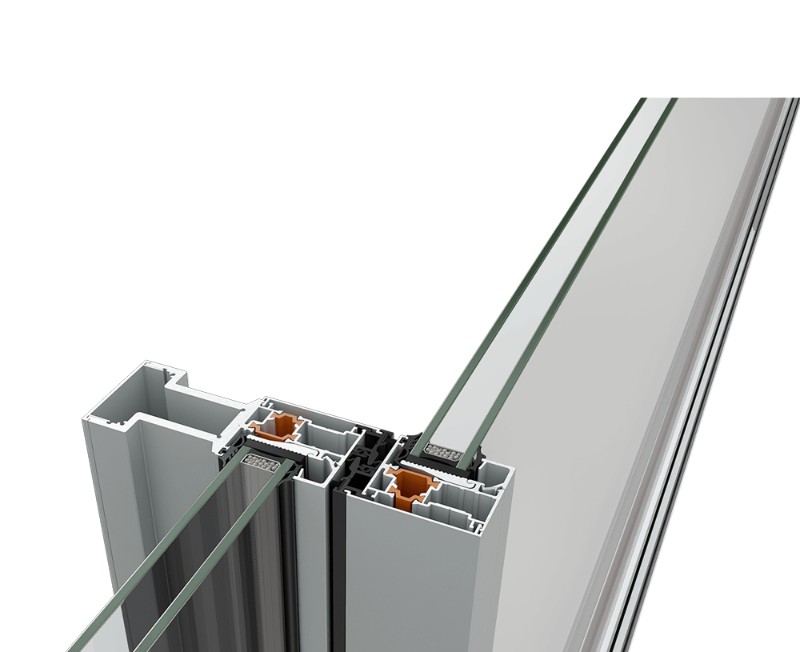

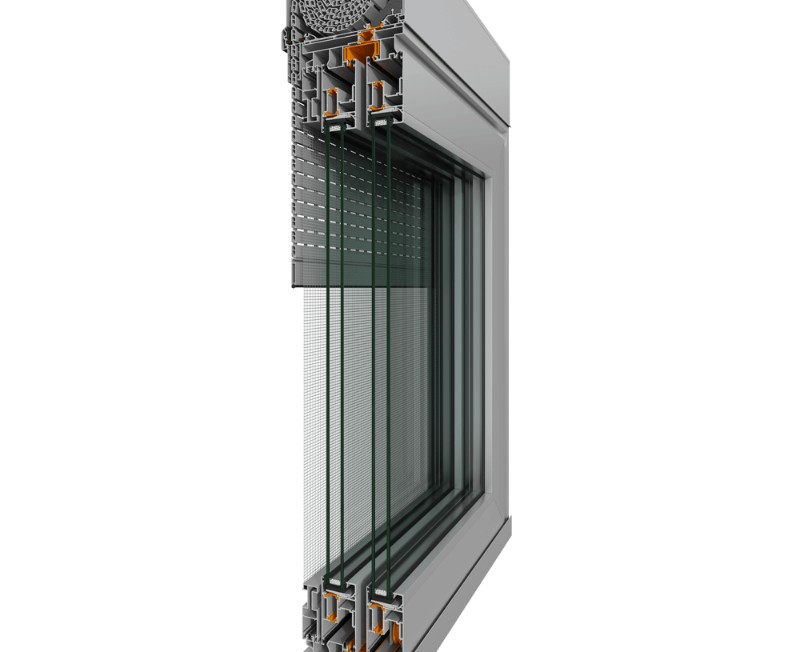

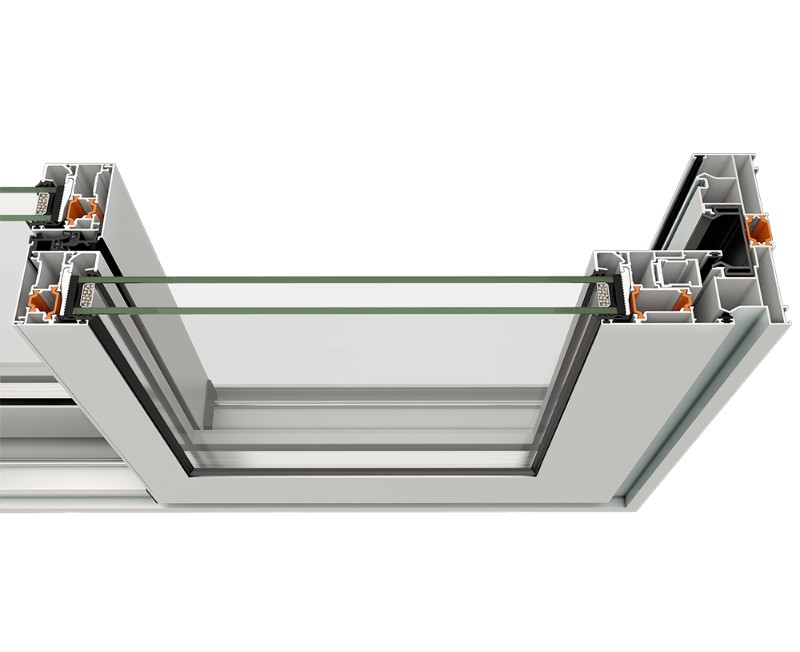

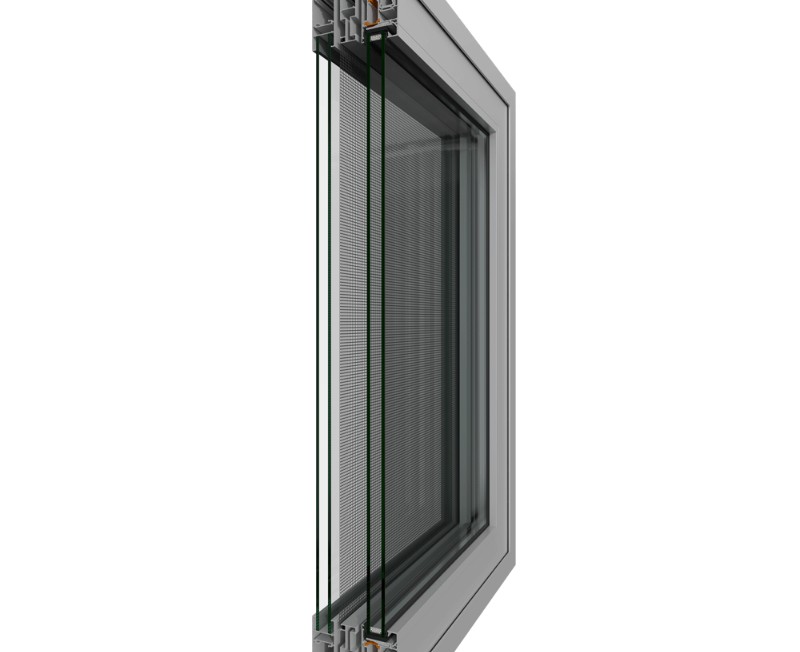

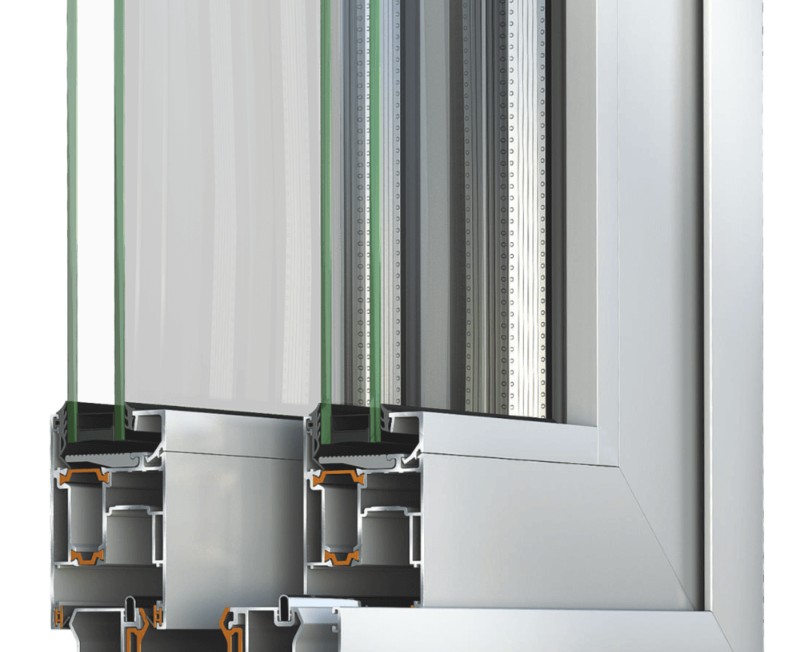

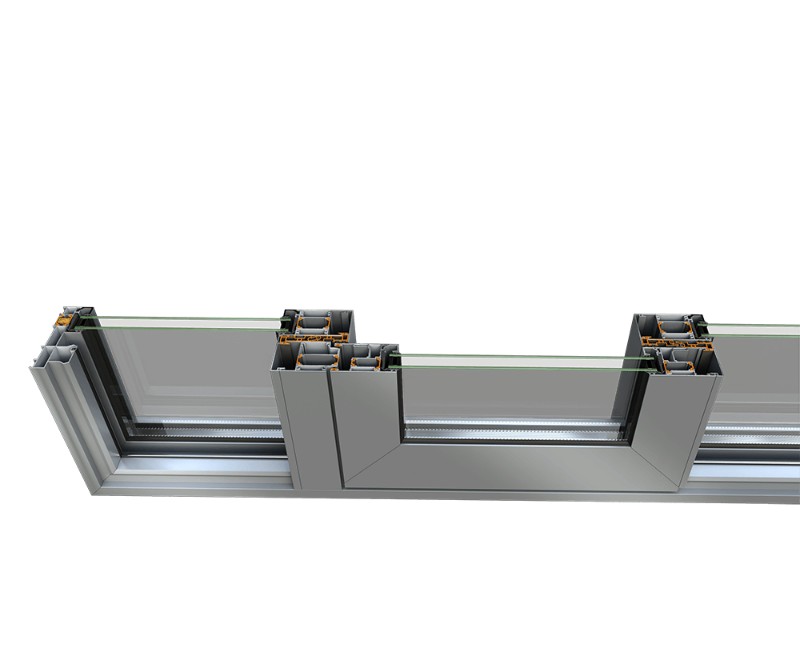

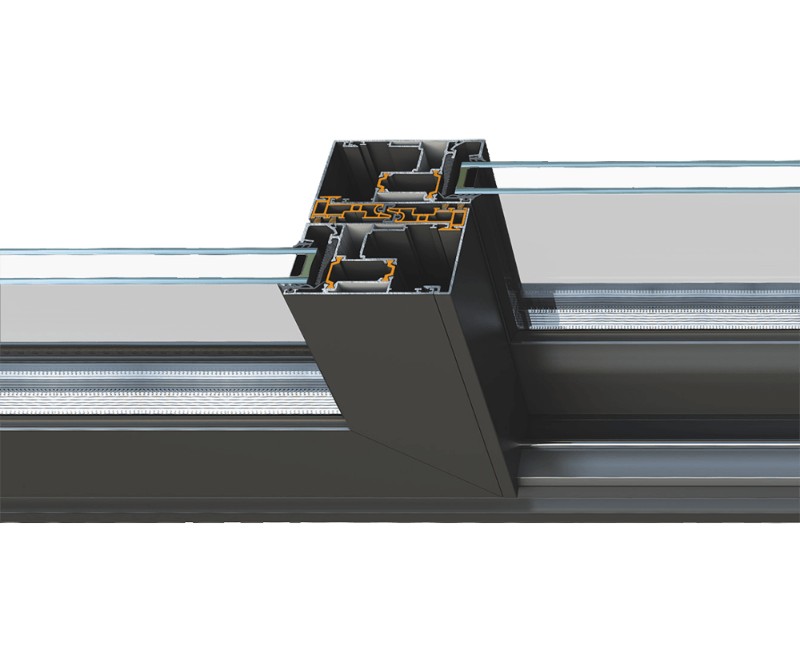

Sections
