Supreme Systems
The SUPREME Systems embody ALUMIL's cutting-edge technology, marking the dawn of a new era in their top-of-the-line systems. They provide an exceptional solution for projects that have rigorous specifications and align with the growing trend of "transparent" architecture, characterized by extensive use of glass surfaces.
ALUMIL SUPREME S700 Insulated
Description
The lift & slide system SUPREME S700 represents the new generation of ALUMIL’s high-end systems. It is an excellent solution for projects with demanding requirements, meeting the trend of “transparent” architecture through extensive glass surfaces, with high thermal insulation, safety and modern design. Its minimal design and its various innovative characteristics, make it the ideal option for projects requiring wide spans for enhanced daylight, outstanding performance and maximum ease of use.
Advantages
-
Differentiation in the market through high-end systems that follow the modern architectural trends
-
Increased clientele thanks to high-end products
-
Exceptional quality with certified performances
-
Wide variety of typologies and solutions
-

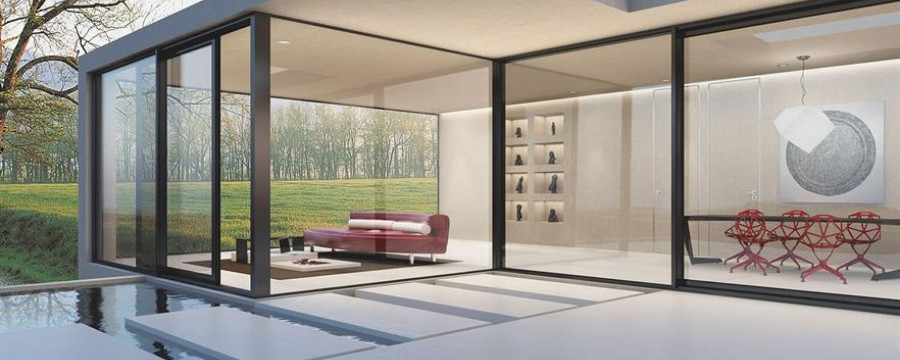

Ideal for wide spans
-
Special solutions for hotels
-
Maximum ease of use and high functionality, optionally combined with automatic motion
- Increased static loads and functionality in case of severe weather conditions
Generic
WINDOW TYPES
Lift & Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat
Performance
UF
from 2,3 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
115 mm
MAXIMUM GLAZING THICKNESS
22 up to 50 mm
WATER TIGHTNESS
9A
TYPE OF THERMAL INSULATION
Polyamides, ALUMIL Energy bar, Insulation foam, PVC
TYPES OF TYPOLOGY

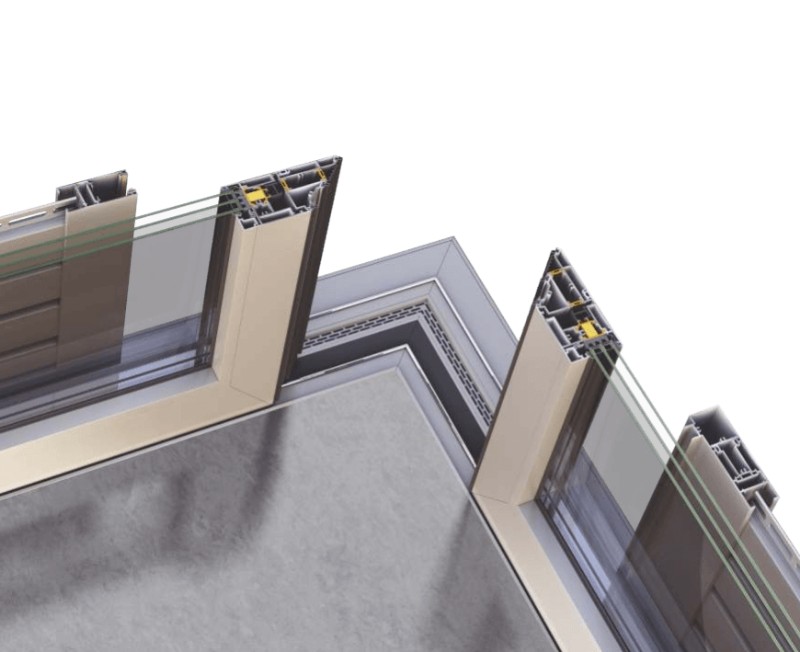

Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typo
SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
47 mm
SASH WEIGHT
up to 400 Kg
WIND LOAD RESISTANCE
C4/B4
MINIMUM THRESHOLD HEIGHT
24 mm
GLAZING TYPE
Double - Triple
AIR PERMEABILITY
4
SASH DEPTH
70 mm
MECHANISM
Lift & slide mechanism
BURGLAR RESISTANCE
RC2
Typologies
Media Gallery

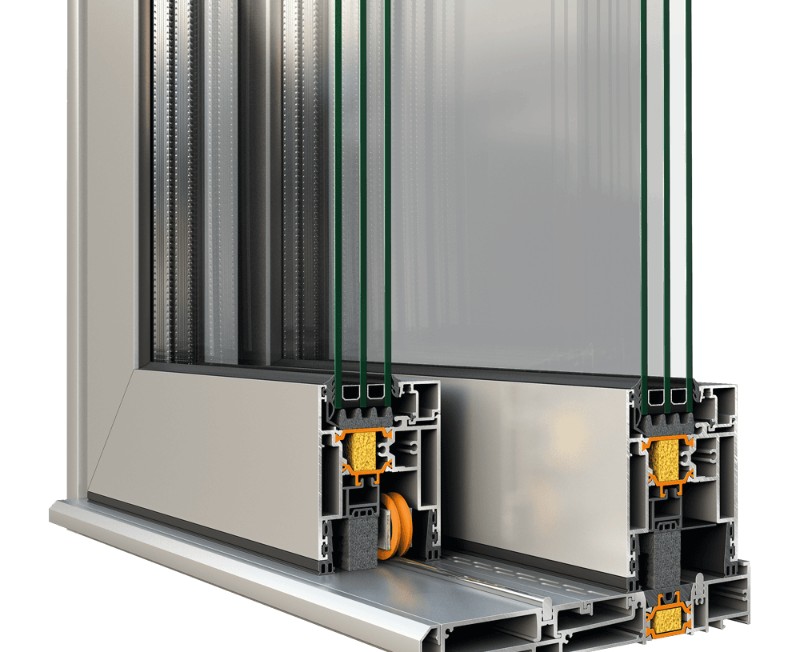

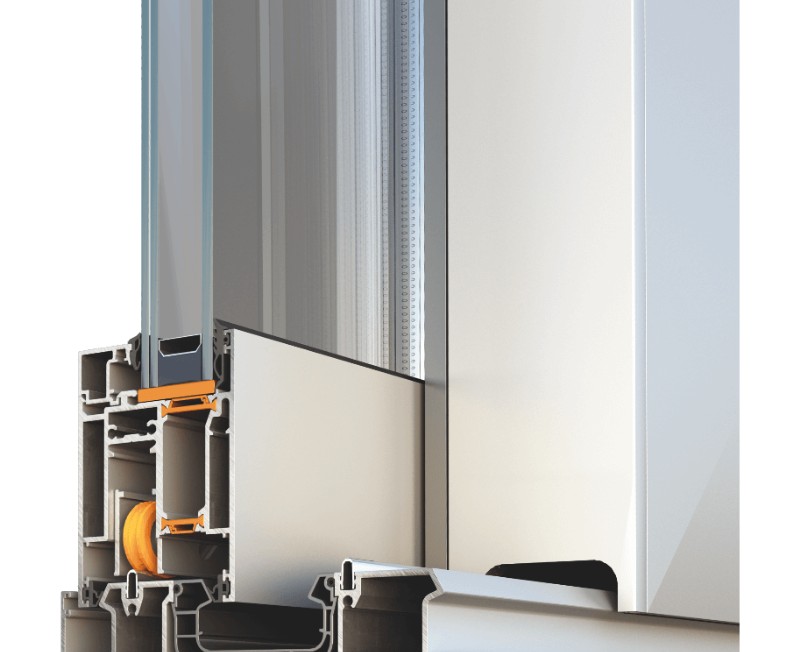

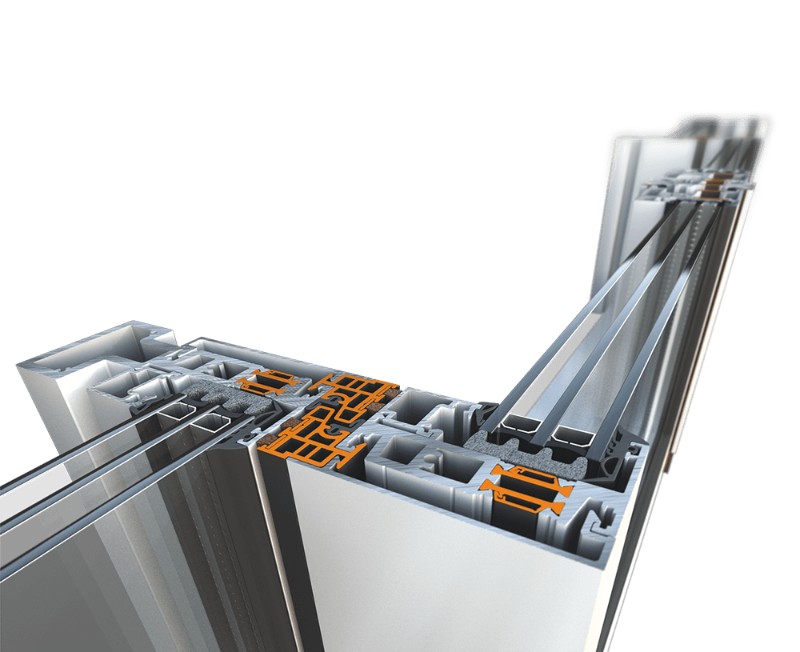

Sections
