Hinged Doors & Windows
We offer a comprehensive selection of Hinged systems that cater to various projects and building types, encompassing residential, commercial, traditional, and contemporary applications. Our range includes different types of Side-hinged or Tilt & Turn doors and windows, all engineered to deliver supreme performance. Regardless of the specific requirements, our Hinged systems provide reliable and high-quality solutions for any construction project.

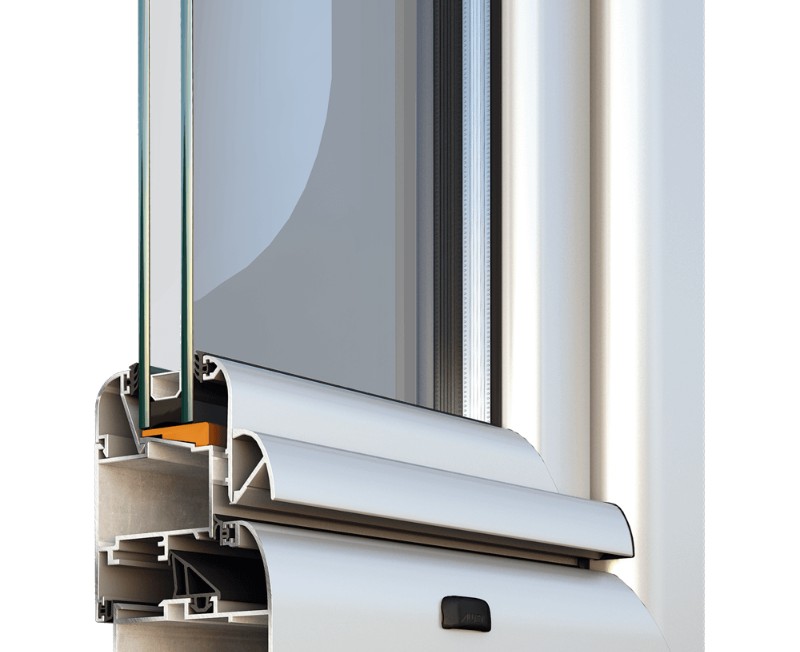

ALUMIL COMFORT M9400 Non-Insulated
Description
COMFORT M9400 consists one of the most completed non-insulated casement systems which can serve a wide range of different needs with satisfied performances.
Advantages
-
Very good value for money
-
Flexibility in construction
-
Variety of solutions
-
Variety of profile design
-
Competitive manufacturing costs due to reduced fabrication time
- High functionality
Generic
WINDOW TYPES
Hinged
THERMAL INSULATION
No
EXTERIOR SHAPES
Curved, Flat
Characteristics
SASH WEIGHT
up to 180 Kg
WATER TIGHTNESS
E750
MECHANISM
Euro-groove, Euro-nut
WIND LOAD RESISTANCE
C5
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
153 mm
MAXIMUM GLAZING THICKNESS
From 4 mm up to 39 mm
SOUND REDUCTION
36 dB
AIR PERMEABILITY
4
FRAME DEPTH
45 mm
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
TYPES OF TYPOLOGY
For all tilt & turn typologies
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
104 mm
GLAZING TYPE
Single - Double - Triple
Typologies
Media Gallery
Sections
