Hinged Doors & Windows
We offer a comprehensive selection of Hinged systems that cater to various projects and building types, encompassing residential, commercial, traditional, and contemporary applications. Our range includes different types of Side-hinged or Tilt & Turn doors and windows, all engineered to deliver supreme performance. Regardless of the specific requirements, our Hinged systems provide reliable and high-quality solutions for any construction project.

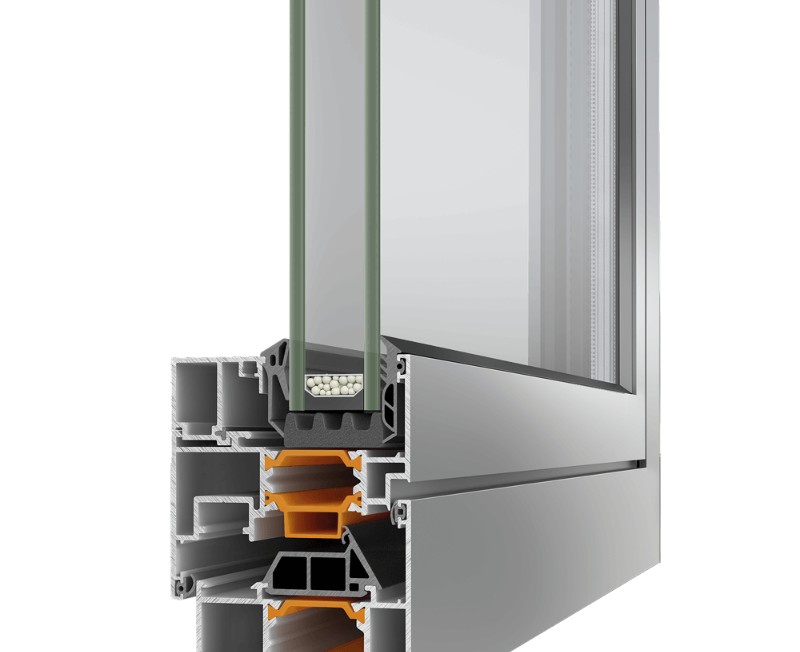

ALUMIL SMARTIA S67 Insulated
Description
SMARTIA S67 is the new complete Tilt & Turn system of ALUMIL, which combines outstanding thermal insulation performances along with high construction flexibility and exceptional design.
Advantages
-
Very good value for money
-
High Energy Efficiency
-
Special solutions for hotels
-
Increased level of security
-
High level of sound insulation
-
High functionality
-
Increased static loads and functionality in case of severe weather conditions
-
Flexibility in construction
-
Ease of access according to specifications for people with special needs and children
-
Modern design for windows with either flat or curved line
- High quality with certified performances
Generic
WINDOW TYPES
Hinged
THERMAL INSULATION
Yes
EXTERIOR AESTHETICS LINEAR
Flat
Performance
UF
from 1,1 to 2,6 W/m²K
SASH WEIGHT
up to 180 Kg
MINIMUM THRESHOLD HEIGHT
13 mm
MECHANISM
Euro-groove, Euro-nut
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
BURGLAR RESISTANCE
RC3
SASH DEPTH
75 mm
MAXIMUM GLAZING THICKNESS
Up to 58 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93 mm
FRAME DEPTH
67 mm
WATER TIGHTNESS
E900, Ε1200
TYPE OF THERMAL INSULATION
30mm fiber glass polyamides, PE insulation Foam
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
67 mm
TYPES OF TYPOLOGY
For all tilt & turn typologies
AIR PERMEABILITY
Class 4
GLAZING TYPE
Double - Triple
Typologies

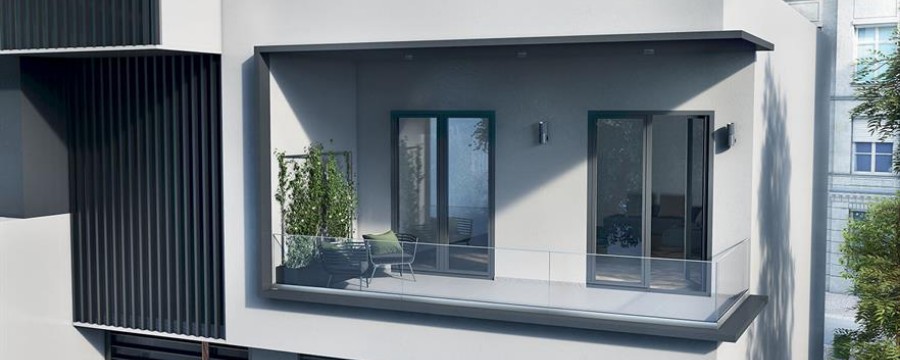

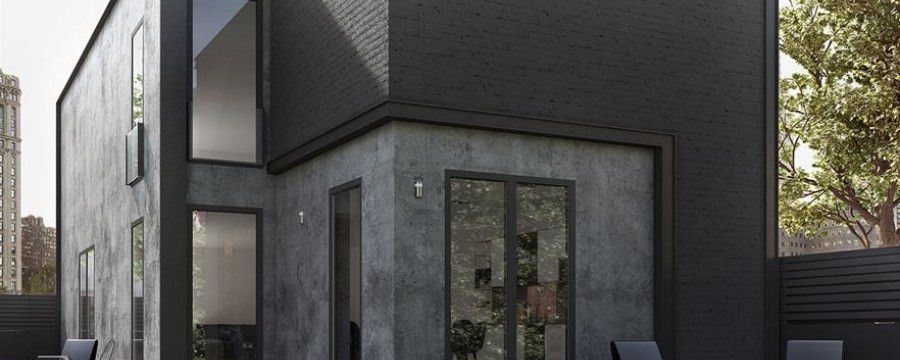

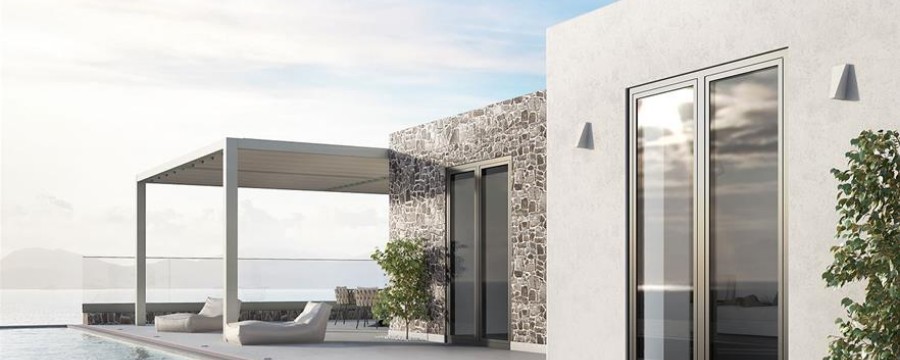

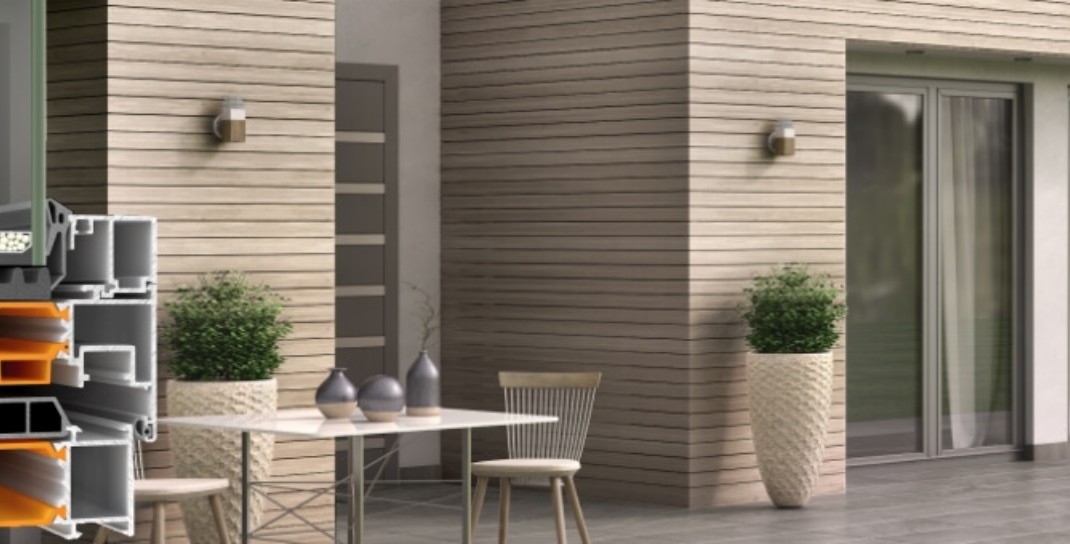

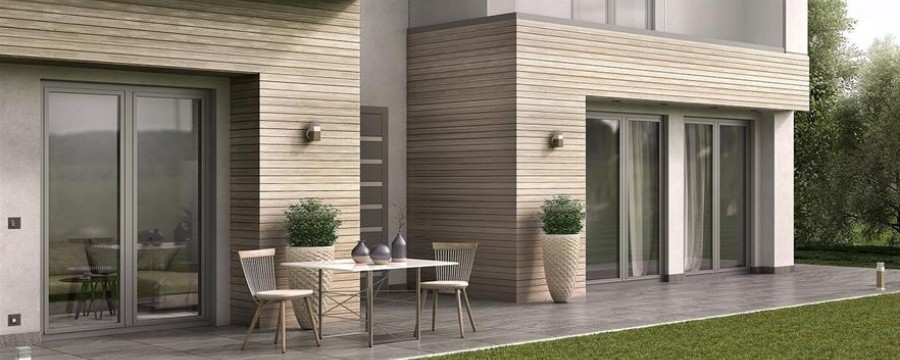

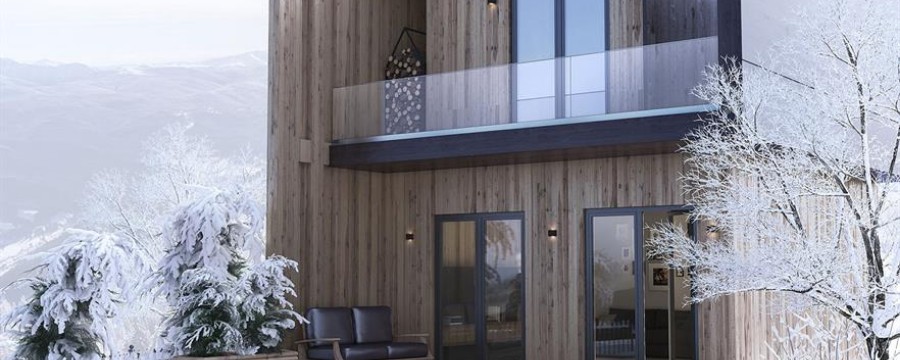

Media Gallery

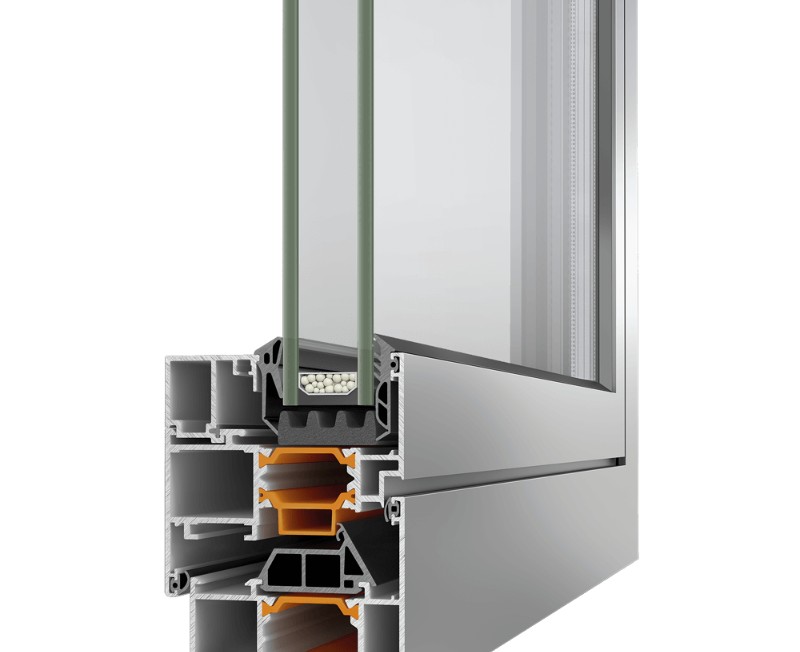

Sections
