ALUMIL SUPREME S77

Description

The system SUPREME S77 is ALUMIL's proposal for advanced insulating casements, which meet the high standards of all advanced markets and incorporate a modern design. It is the ideal solution for projects that require high performance and maximum security.

Advantages

  • Competitive manufacturing costs due to the use of common materials with other systems and reduced fabrication time
  • Differentiation in the market through high-end systems that follow the modern architectural trends
  • Increased clientele thanks to high-end products
  • Exceptional quality with certified performances
  • Ease of use and high functionality
  • Flexibility in fabrication
  • Wide variety of typologies and solutions
  • Casements according to specifications for people with special needs
  • Special solutions for hotels
  • Increased static loads and functionality in case of severe weather conditions

Generic

WINDOW TYPES Hinged
THERMAL INSULATION Yes
EXTERIOR SHAPES Flat, Curved

Performance

UF from 0,85 W/m2K

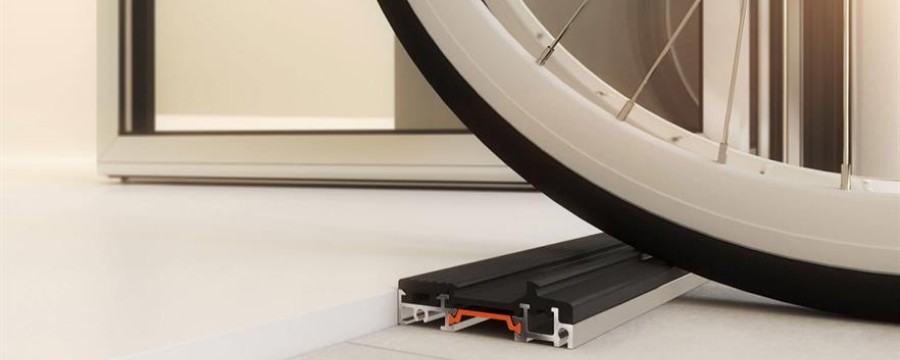

MINIMUM THRESHOLD HEIGHT 13 mm
BURGLAR RESISTANCE RC3
WATER TIGHTNESS E900
SASH WEIGHT up to 180 Kg
SOUND REDUCTION 42 dB

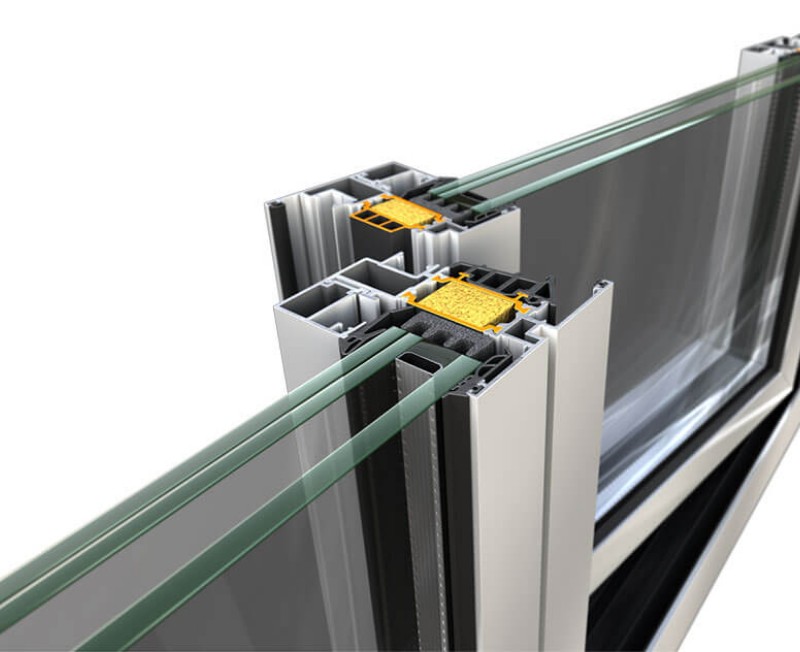

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) 122 mm
SEALING METHOD Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MECHANISM Euro-groove, Euro-nut
MAXIMUM GLAZING THICKNESS 24 up to 72 mm
WIND LOAD RESISTANCE C5/B5

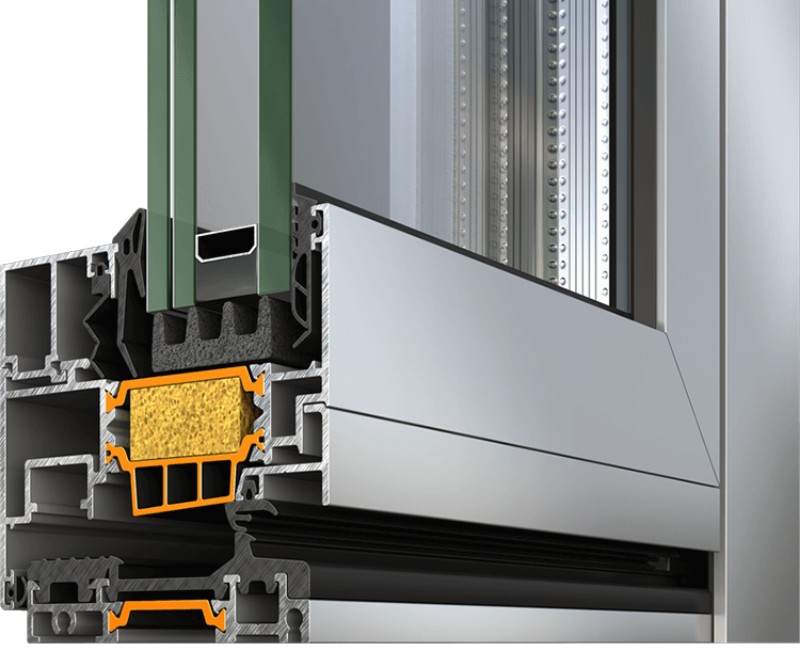

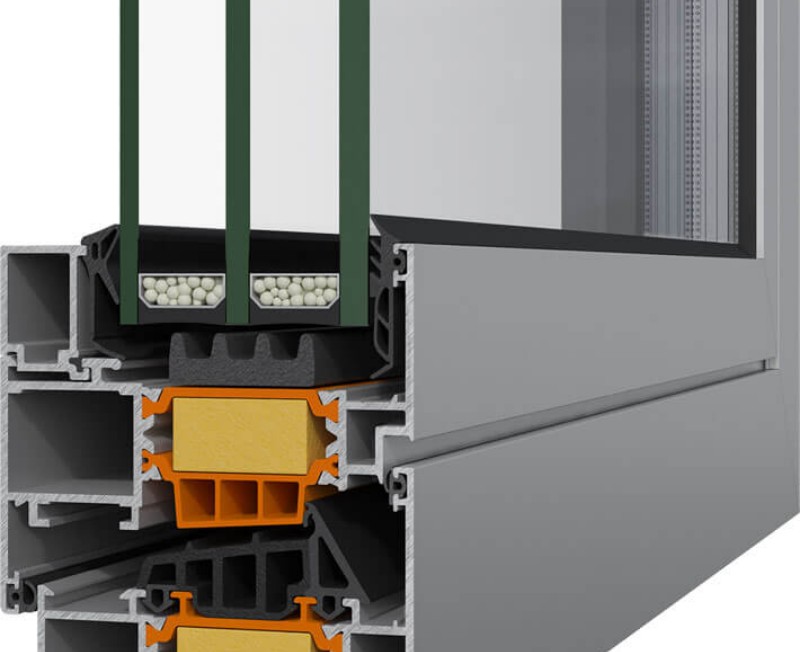

TYPE OF THERMAL INSULATION Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
TYPES OF TYPOLOGY For all tilt & turn typologies, pivot windows
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT 93 mm
FRAME DEPTH 77 mm
GLAZING TYPE Double - Triple
