ALUMIL SMARTIA M9660

Description

SMARTIA M9660 is an insulated Tilt & Turn system for areas with warmer climate, ensuring high quality constructions and application of various typologies with considerable thermal performance. It is ideal for renovations, combining safety and functionality, without requiring high investment costs.

Advantages

  • Very good value for money
  • High energy savings due to the high energy efficiency of the system
  • Increased level of security
  • High level of sound insulation
  • Ease of use and high functionality
  • Modern design for windows either with flat or curved line
  • High quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
  • Entrance doors with ease of access according to specifications for people with special needs
  • Special solutions for Hotels
  • Variety of alternative solutions
  • Flexibility in construction

Generic

WINDOW TYPES Hinged
THERMAL INSULATION Yes
EXTERIOR SHAPES Classic, Curved, Flat

Performance

UF from 1.8 up to 2.5 W/m²K
FRAME DEPTH 56 mm
BURGLAR RESISTANCE RC2
AIR PERMEABILITY Class 4
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT 82 mm
TYPES OF TYPOLOGY For all tilt & turn typologies
SASH DEPTH 63,5 mm
MINIMUM THRESHOLD HEIGHT 15 mm
SOUND REDUCTION 36 dB
WATER TIGHTNESS Ε1650
GLAZING TYPE Double - Triple
MAXIMUM GLAZING THICKNESS 20 up to 49 mm
SEALING METHOD Perimetrical at 3 levels with EPDM gaskets
SASH WEIGHT up to 180 Kg
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) 61 mm
TYPE OF THERMAL INSULATION Polyamides 24 mm, PE insulation Foam


Media Gallery

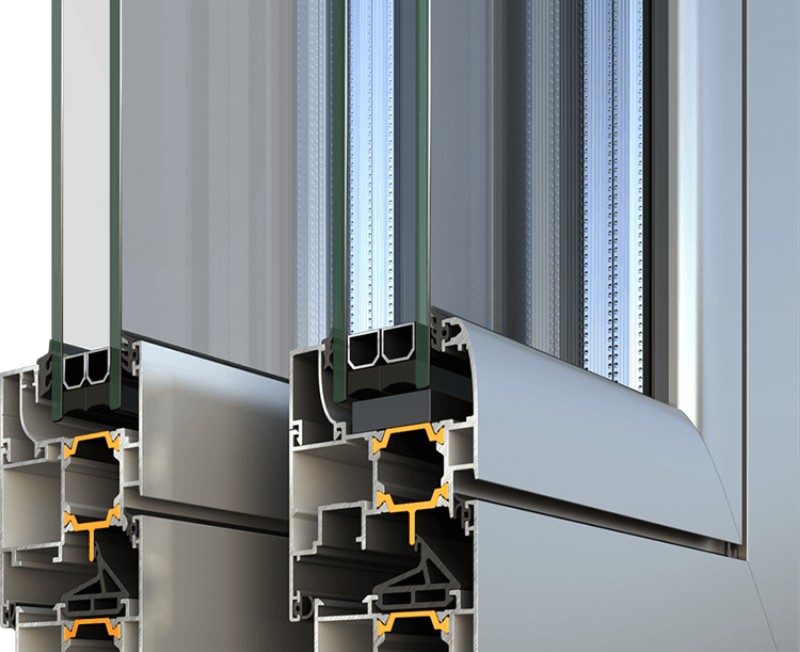

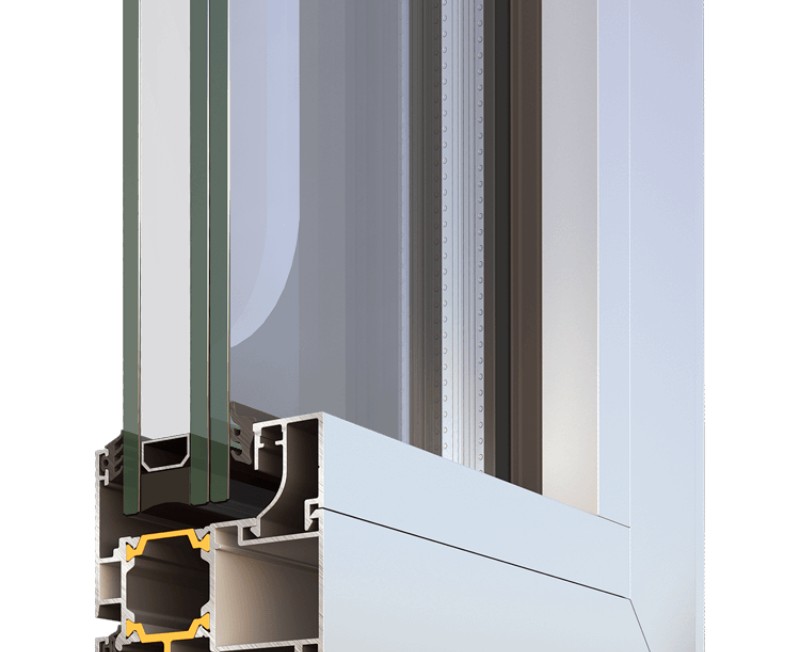

Sections
