Curtain Walls

ALMANAR presents a diverse range of Curtain Walling Systems that cater to various applications. These systems offer specifiers the flexibility to customize the building envelope's aesthetics while benefiting from the seamless integration of an all-in-one aluminum system. This ensures that both design and construction aspects are harmoniously incorporated, delivering a unified and efficient solution.

GULFEX Vortex 61.5mm

Description

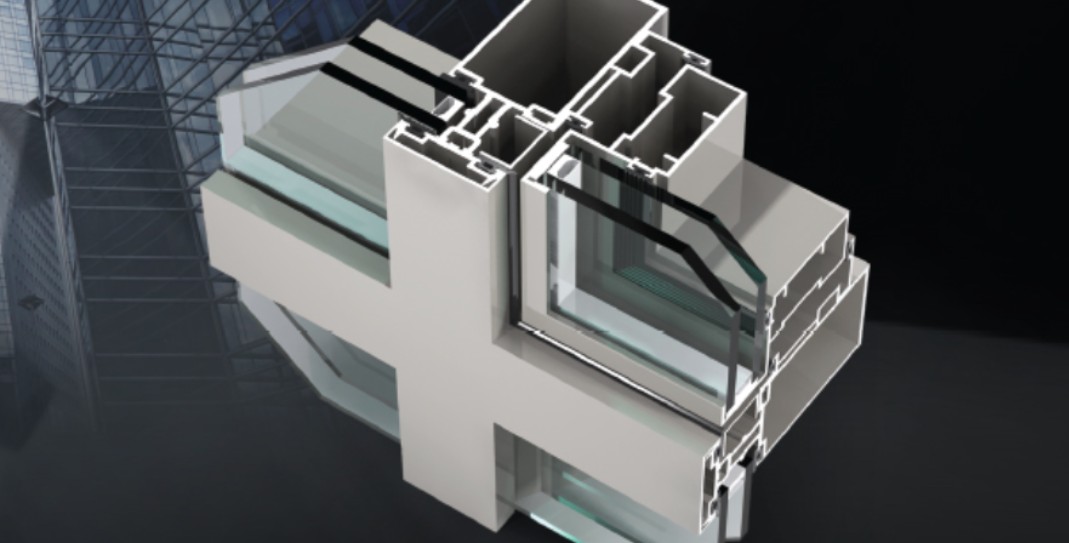

Vortex 61.5 is a unique curtain wall structure that combines multi-structural grid to create various aspects, starting by the conventional curtain wall system passing through the two way horizontal capping curtain wall systems to the four way structural curtain wall systems. Vortex 61.5 has proven to be a curtain wall solution perfectly tailored to the Middle East market requirement.

Advantages

  • Glass thickness: 4mm to 28mm
  • Vortex 61.5mm tested at Al-Futtaim Exova
  • Air infiltration: ASTM E283-04
  • Water penetration: ASTM E331-00
  • Wind resistance (serviceability): ASTM E330-02
  • Wind resistance (safety): ASTM E330-02
  • Accommodates large glass panels
  • Thermal and non-thermal frame & sash options
  • Italian-style casement openings
  • Vortex 61.5 combines various structural grids
  • Conventional curtain wall systems
  • Two-way horizontal capping curtain wall systems
  • Four-way structural curtain wall systems
  • Tailored for the Middle East market
  • Features 61.5mm width structure components for diverse appearances
  • Quick to manufacture and install
  • Wide profile selection maintains stiffness and rigidity
  • Mullions can be reinforced with aluminum or steel tubes for enhanced free span area

Performance

WATER TIGHTNESS ASTM E331-00
AIR PERMEABILITY ASTM E283-04
WIND LOAD RESISTANCE ASTM E330-02
GLAZING TYPE Glass thickness: 4mm to 28mm
