ALUMIL SMARTIA S350 Insulated
Description
SMARTIA S350 is a modern & flexible insulated sliding system with a modern flat design. It is ideal for refurbishments or renovations thanks to its construction easiness.
Advantages
-
Excellent value for money
-
Fairly high energy efficiency
-
Special solutions for hotels
-
Competitive manufacturing costs due to reduced fabrication time
-
Numerous alternative solutions
-
Good sound insulation
-
Sensible natural lighting enhancement thanks to the design of the system
- High quality frame with certified performance
Generic
WINDOW TYPES
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Curved, Flat
Performance
UF
from 2,9 up to 4,8 W/m²K
GLAZING TYPE
Double
SOUND REDUCTION
28 dB
SEALING METHOD
Continuous perimetrical tri fin in two levels brush
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
71 mm
TYPE OF THERMAL INSULATION
Polyamides 24 mm, PVC parts
WIND LOAD RESISTANCE
C2/B3
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
102 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
50 mm
SASH WEIGHT
up to 180 Kg
MAXIMUM GLAZING THICKNESS
up to 25 mm
WATER TIGHTNESS
6Α
SASH DEPTH
35 mm
MECHANISM
Perimetrical locking mechanism
TYPES OF TYPOLOGY
Horizontal sliding, meeting stile, Pocket sliding
AIR PERMEABILITY
Class 3
Typologies
Media Gallery

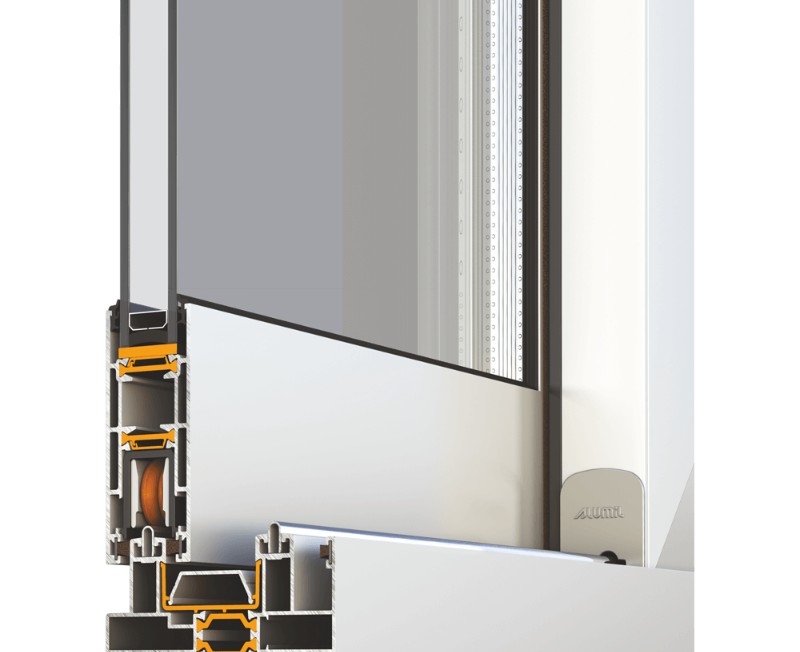

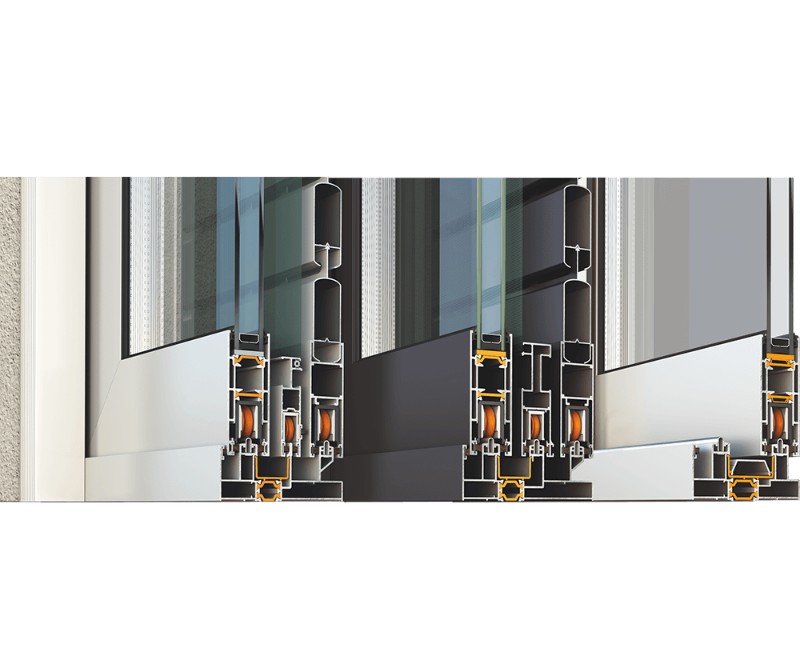

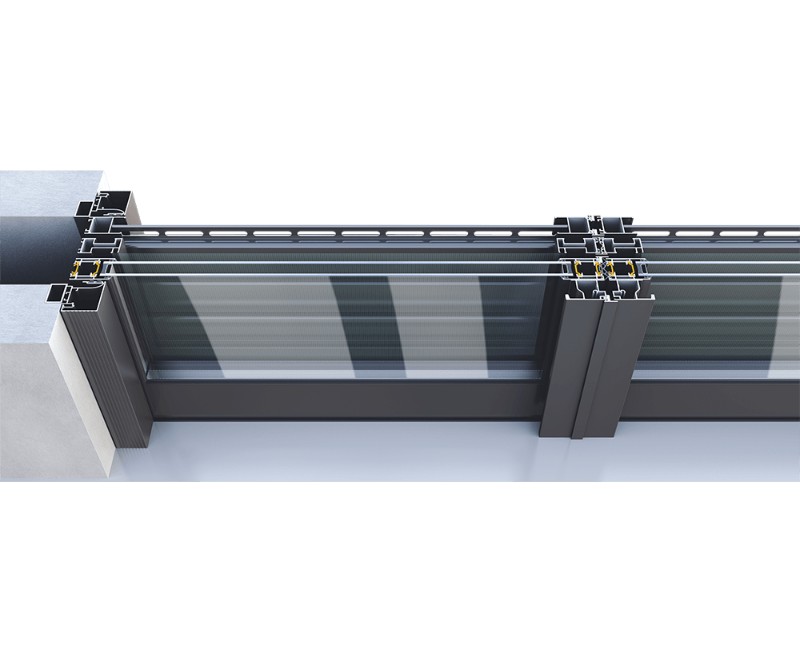

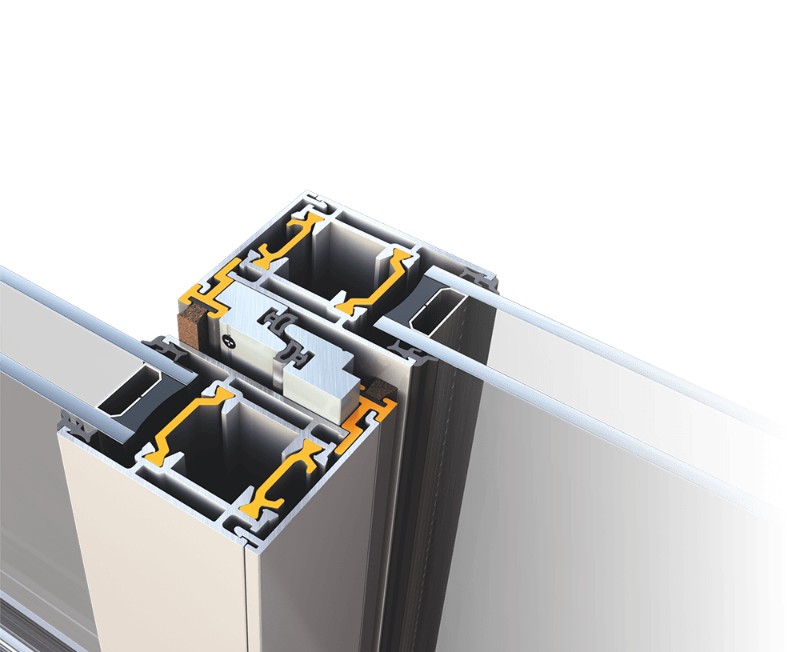

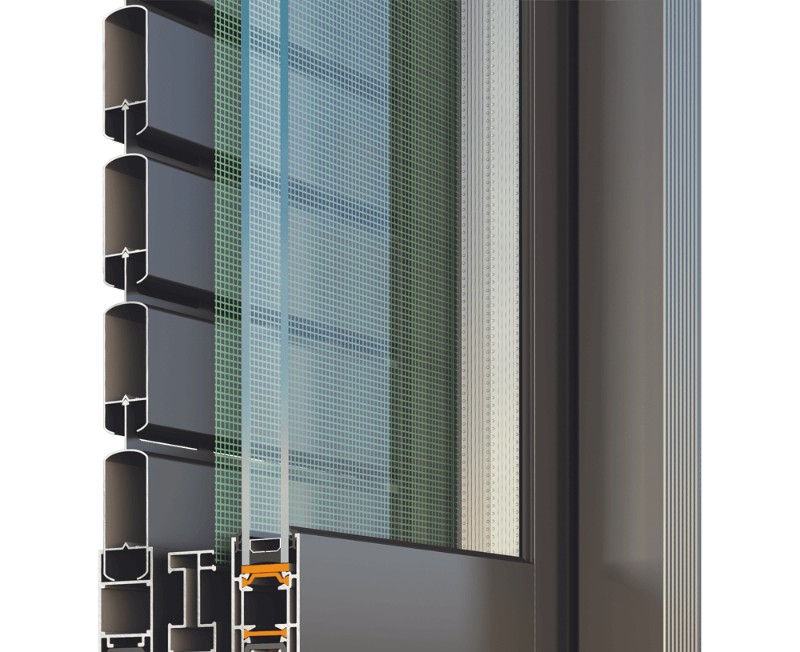

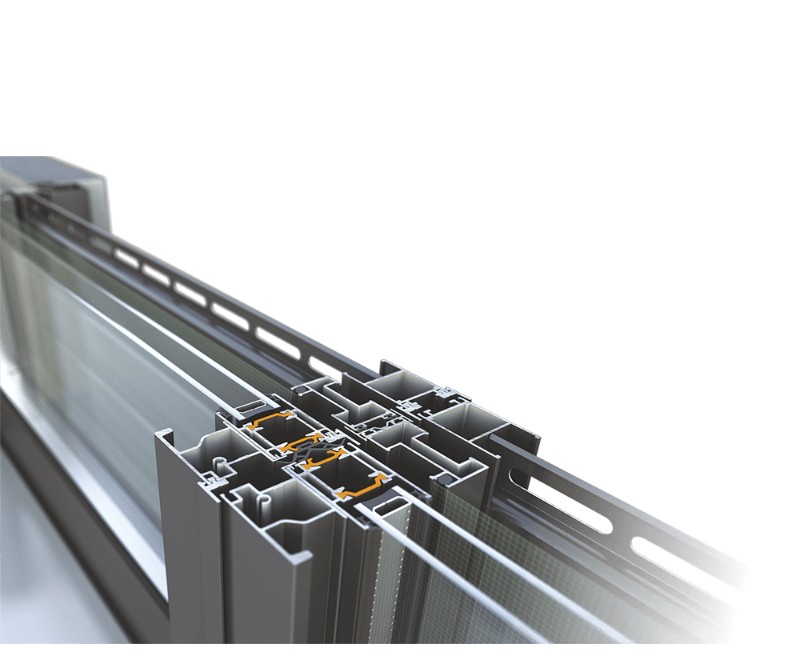

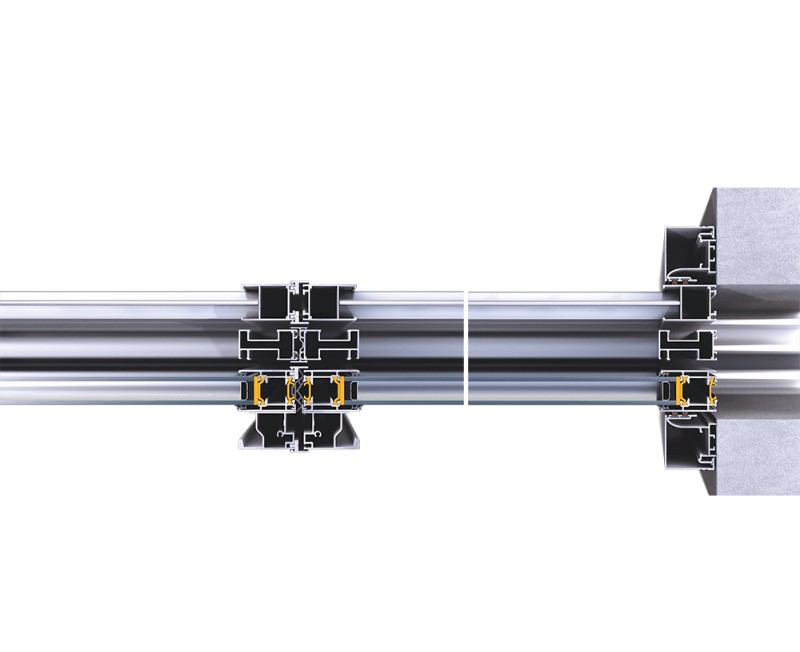

Sections
