Sliding Doors & Windows
Our range of Sliding Systems offers an excellent solution for maximizing space and seamlessly connecting indoor and outdoor areas. By incorporating our aluminum sliding doors and sliding folding doors, you can create expansive glazed areas that invite ample natural light into any room. These innovative systems effectively minimize barriers, allowing for a smooth transition between the interior and exterior spaces.
JUMBO 100
Description

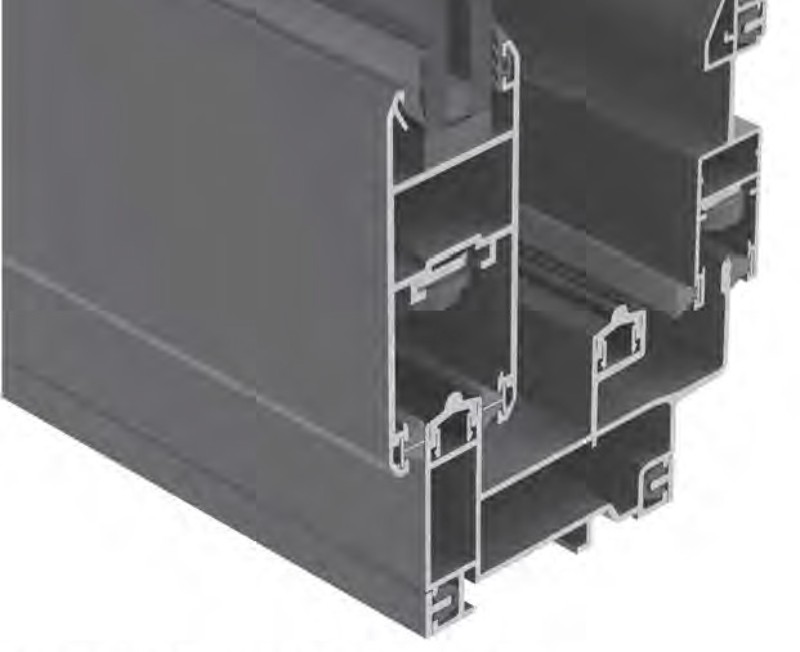

JUMBO 100 is Machines & Aluminium Center (م. شريف علي حسن) sliding system with extremely elegant lines. It meets the modern architectural trends and the requirements for especially high performances and is the ideal solution for areas with warmer climates.
Advantages
-
Wide Variety of frames and sashes in design and aesthetic shapes that match the architecture trends
-
Available in Double or Triple track design, structures with up to six leaves
-
Used for Doors and Windows with large opennings
-
Wide range of locking systems including multi-locking points and anti-lift blocks
- Most of the accessories can be adjusted and fixed with set screws
Characteristics
FRAME DEPTH
74mm to 134mm
SASH WIDTH
36mm
GLAZING TYPE
Single, Double
MAXIMUM GLAZING THICKNESS
up to 26mm
SEALING METHOD
Perimetrical with two rows of high density brushes
Performance
AIR PERMEABILITY
Class 3 up to 600 Pa
WATER TIGHTNESS
Class 8A up to 450 Pa
WIND LOAD RESISTANCE
Class B2 up to 800 Pa

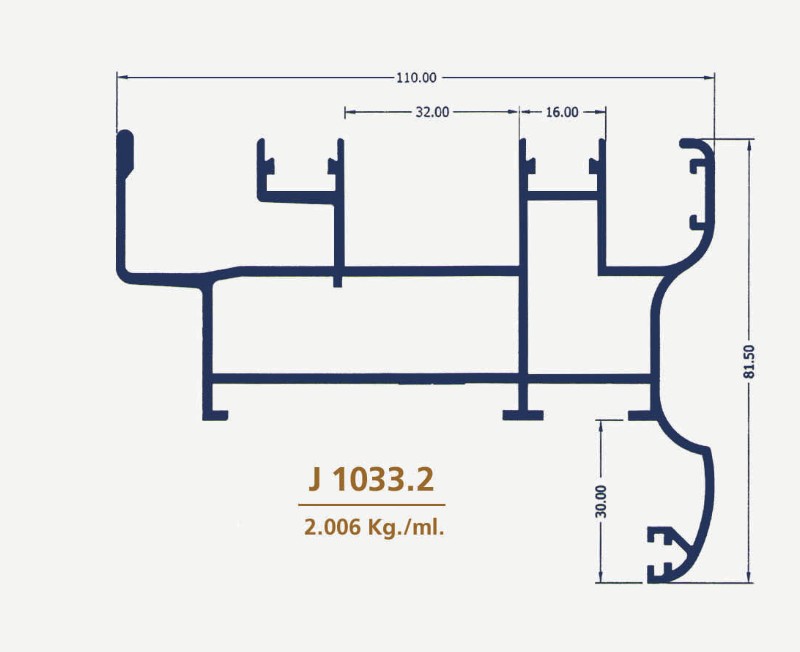

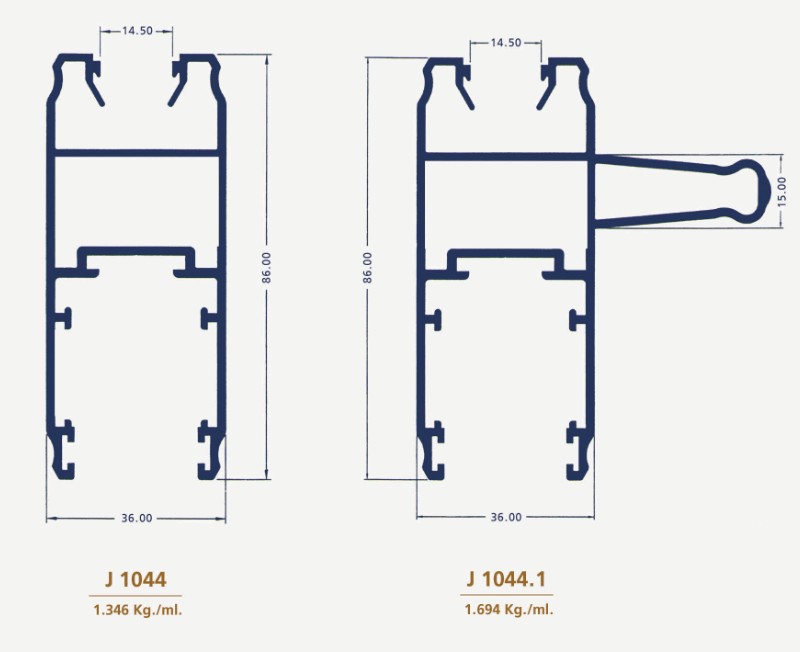

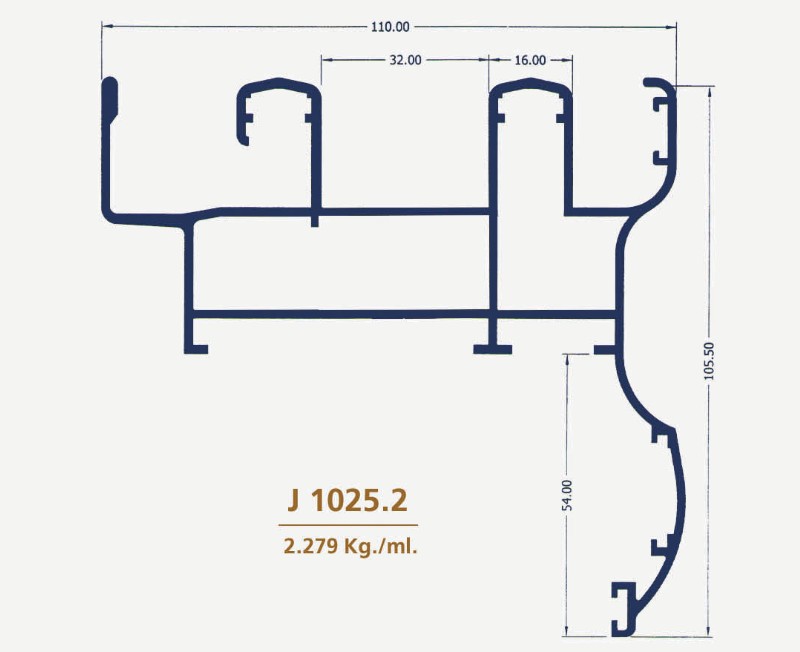

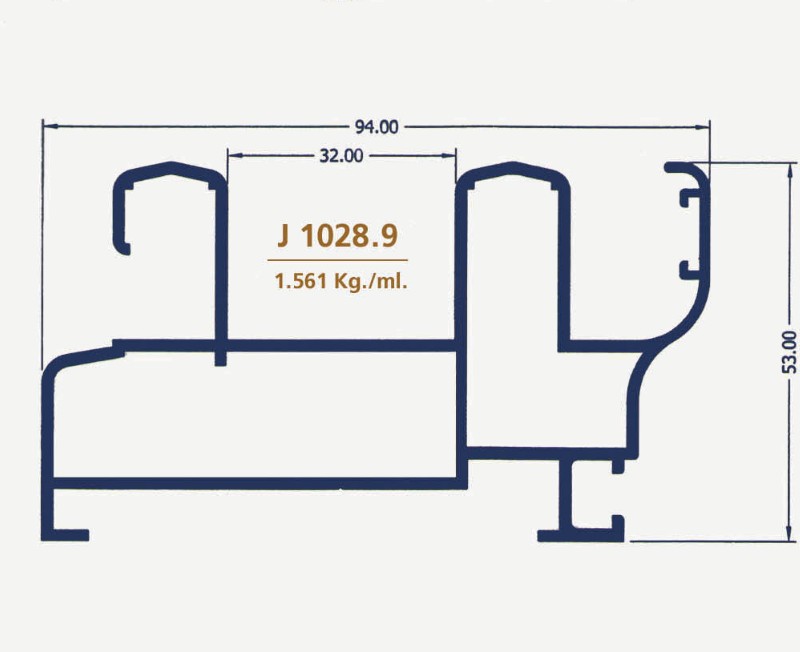

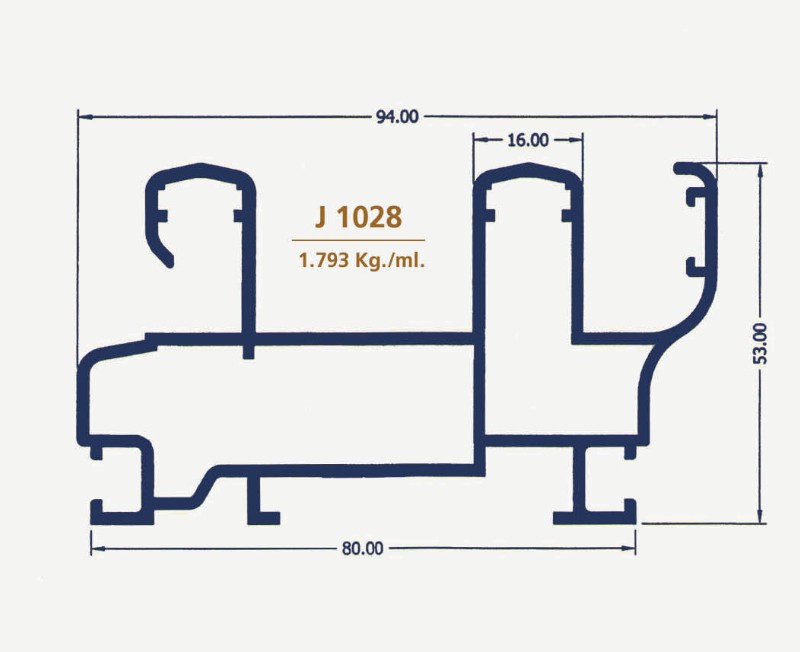

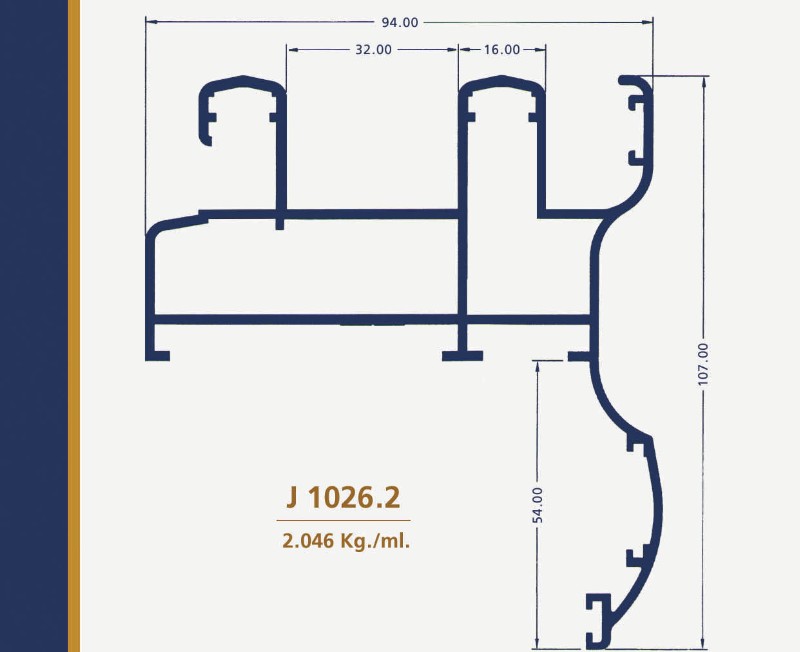

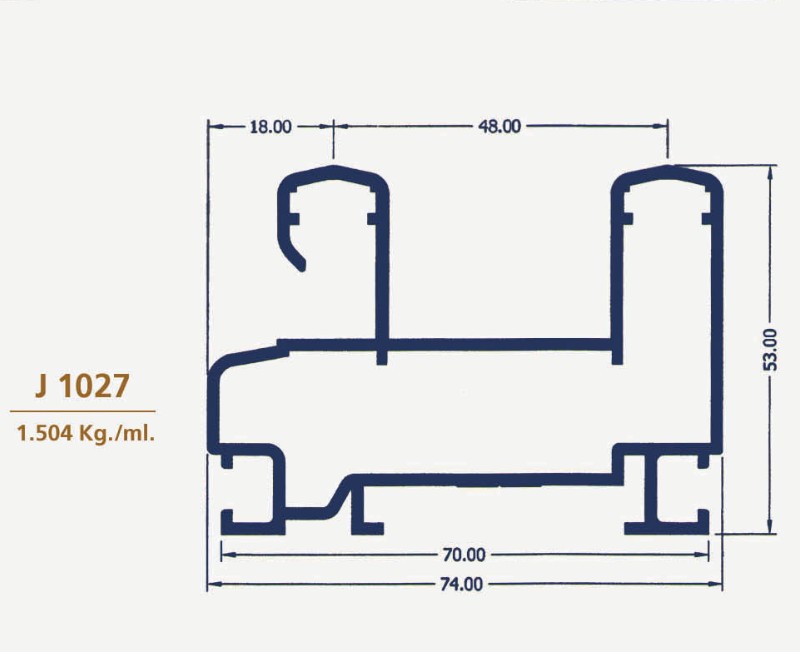

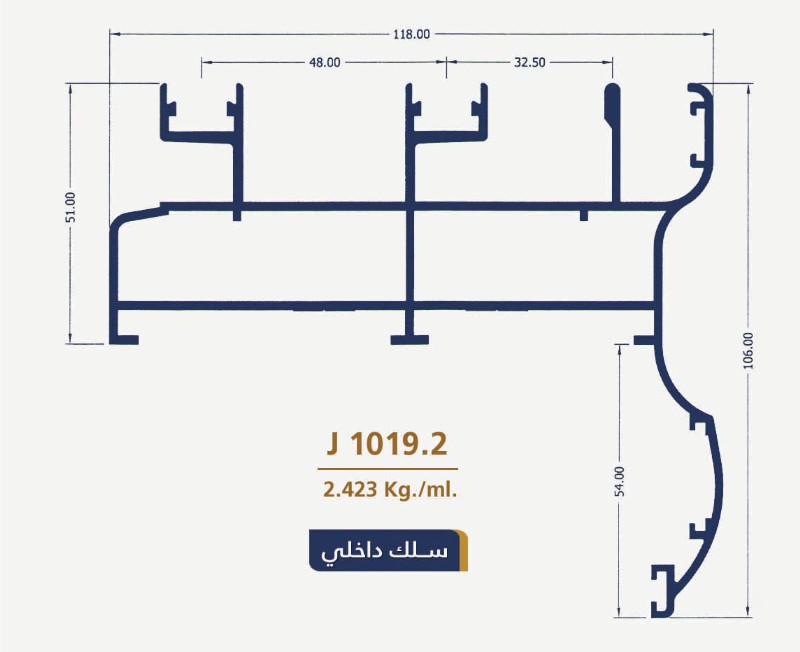

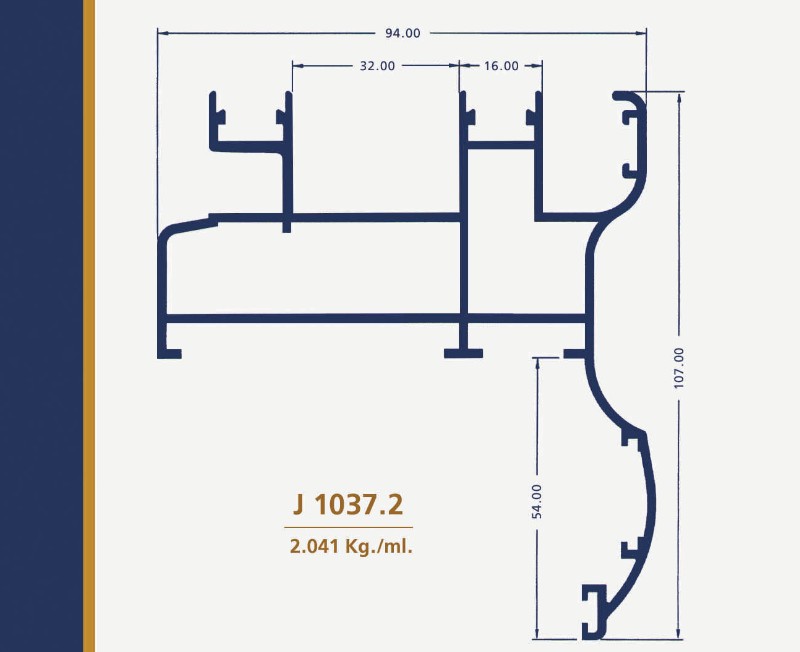

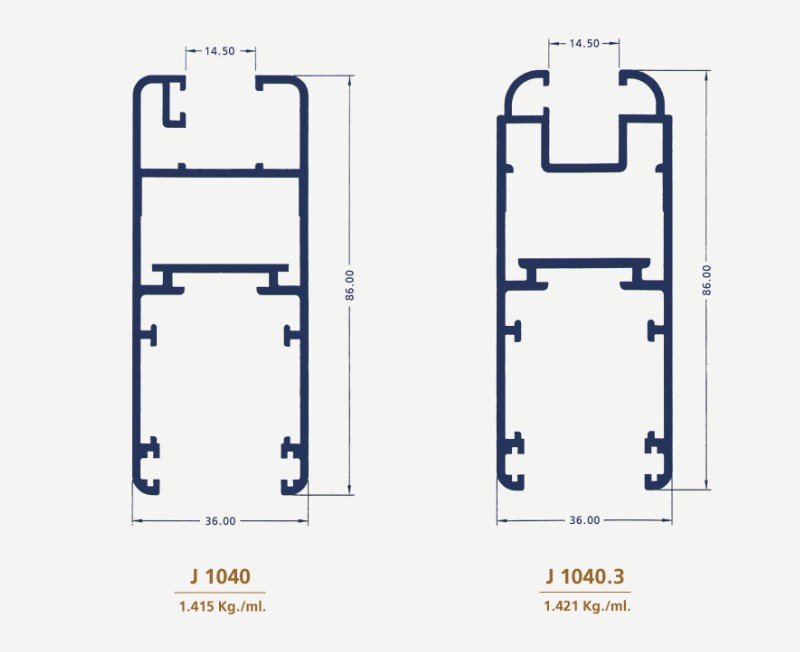

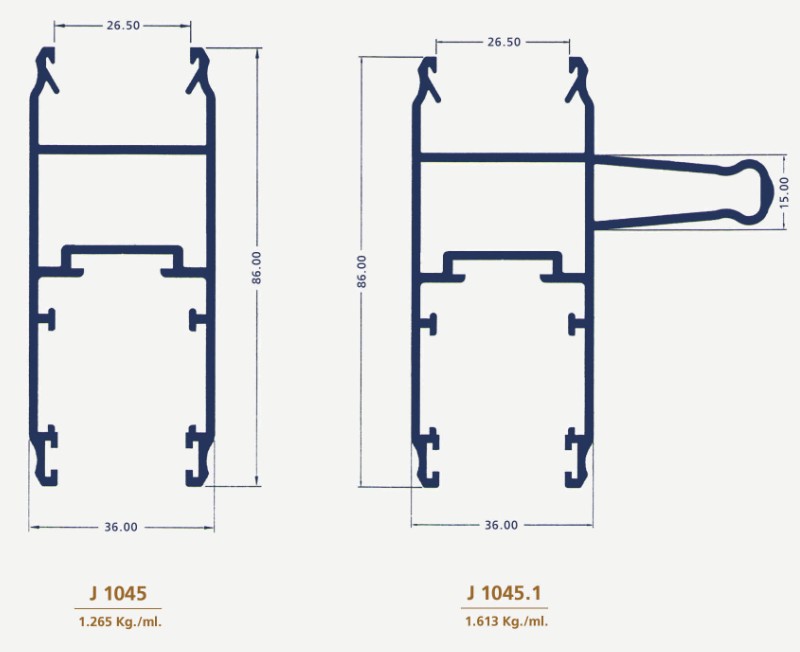

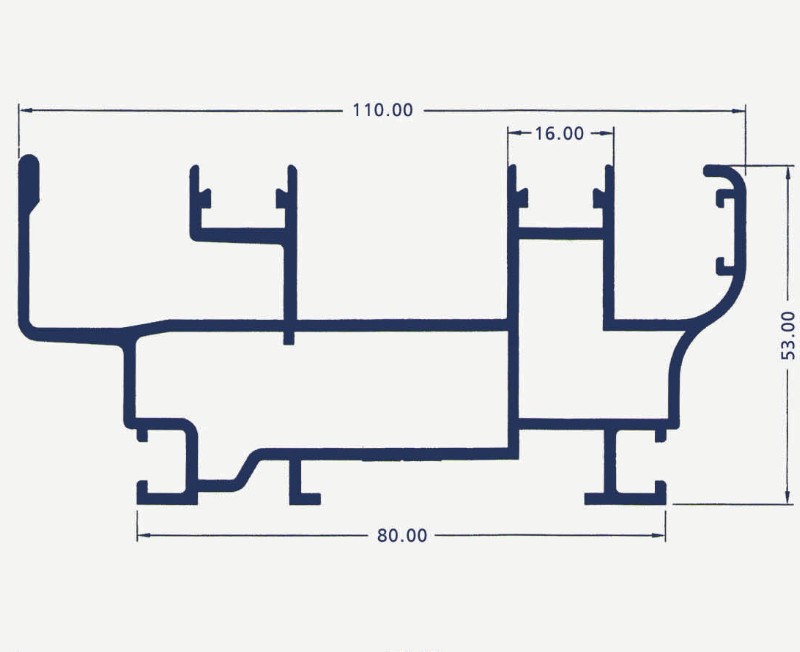

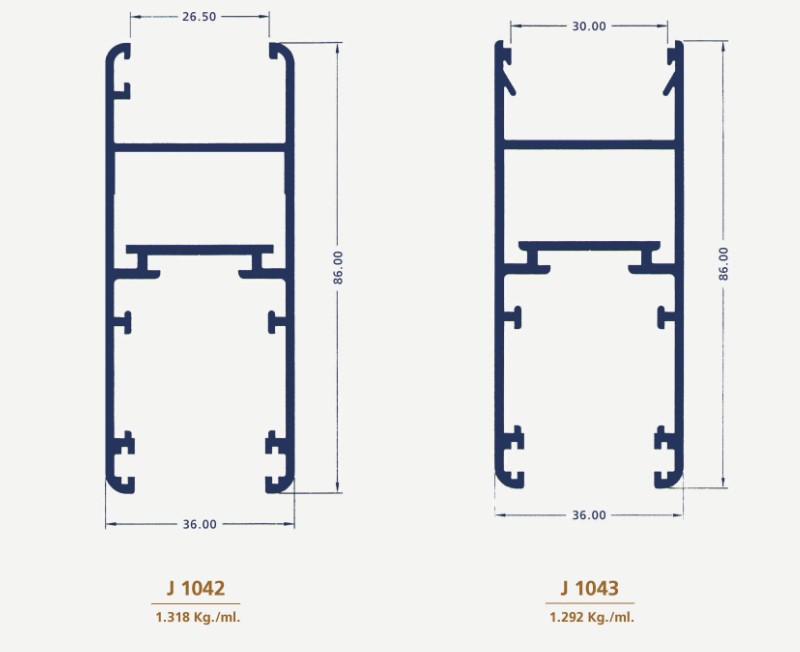

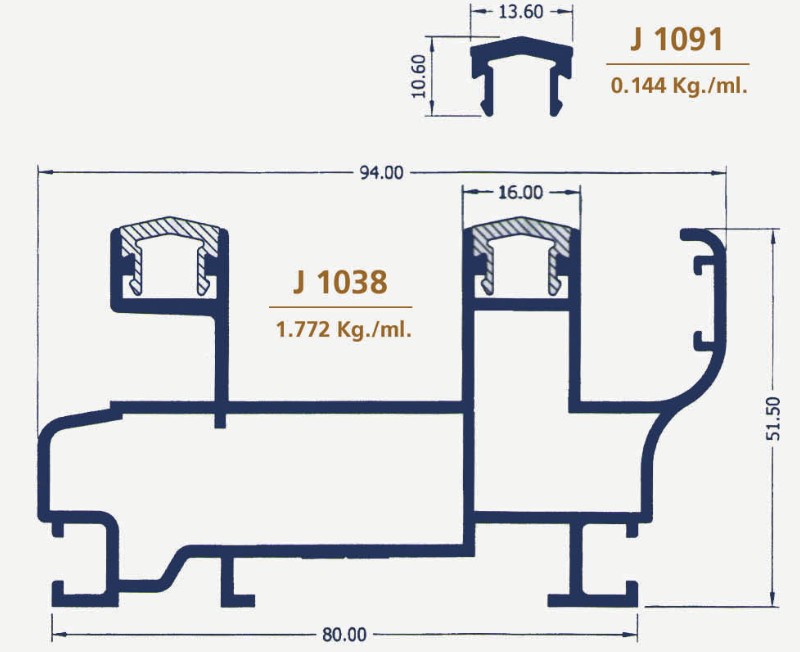

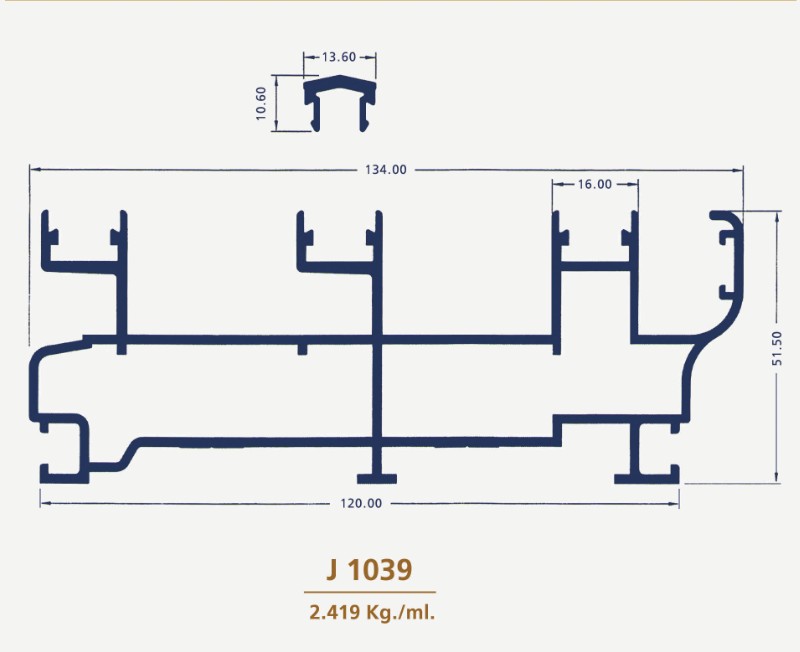

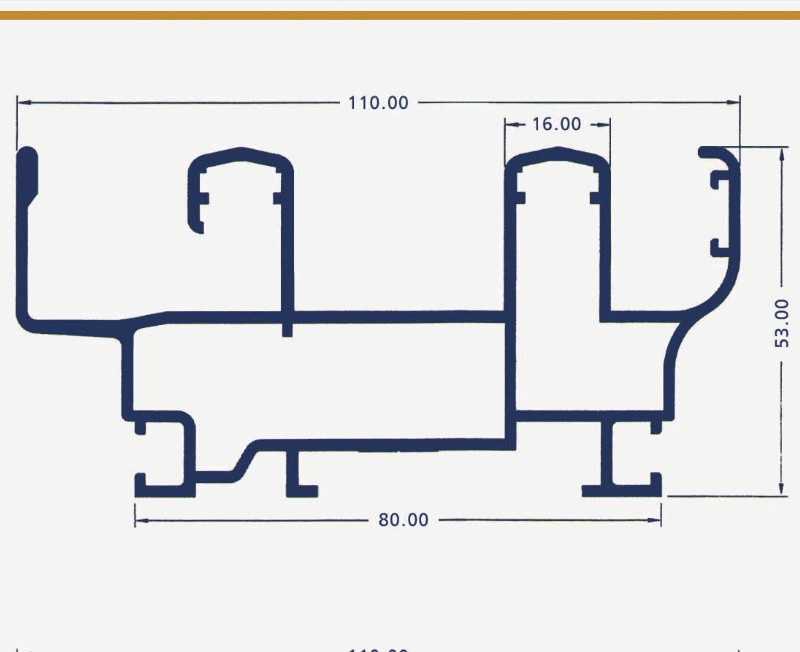

Sections
