Aluminium Bi-Fold doors
Our aluminium folding door systems combine the strength and lightweight properties of aluminium with form and function of the highest standard. Highly versatile and configurable, they offer maximum control over the style and operation of the doors.
ALUMIL SUPREME SF85 Insulated
Description
A world class highly insulated folding door system with bottom slide operation, which combines minimal aesthetics with outstanding performance, very large dimensions with literally low sight lines, enhanced burglar protection with a very large variety of solutions.
Advantages
-
Very large dimension in terms of height (up to 4.0m), vent width (up to 1.5m)and total span width
-
Amazingly reduced sight lines which contributes to the overall minimal design
-

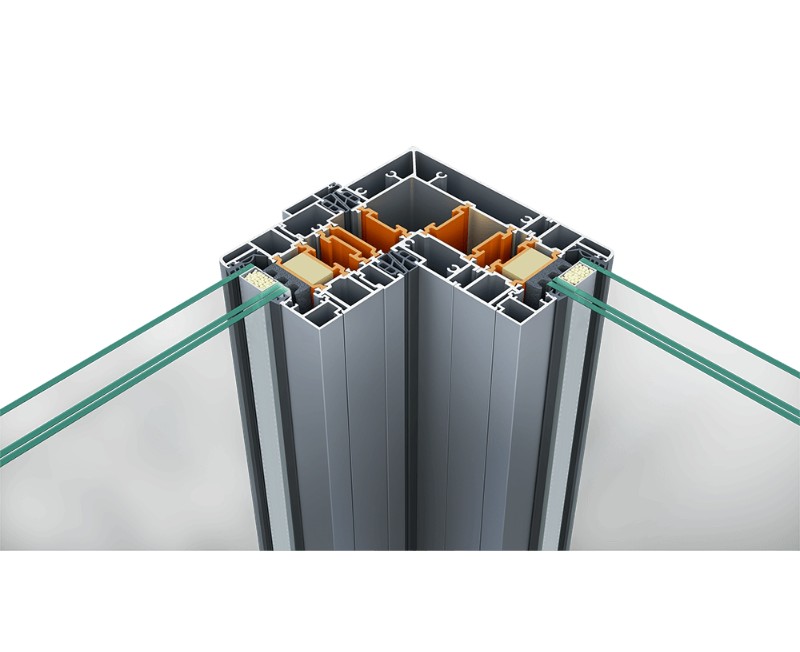

Extensive variety of solutions, with odd and even number of vents, corner construction, semi-structural vent version, inwards and outwards opening
-
Extreme performance in terms of air permeability, wind load resistance and water tightness
-
Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K)
-
Enhanced levels of security and burglar protection, meeting all sector security standards
- Smooth operation and long-lasting flawless functionality
Generic
AESTHETICS
minimal, relatively low sight line
THERMAL INSULATION
Yes
APPLICATIONS
residential with 1.5m panel width, commercial with 4.0m panel height, high-end projects
PANEL
aluminium framed panel, semi-structural panel
Characteristics
SASH WIDTH
85 mm
GLAZING
21-58mm
POLYAMIDE
Double 40mm
EXTRA INSULATING FITTINGS
Alumil energy bar insulation and PE insulation foam
MAIN GASKET
Single from co-extruded EPDM and foam
LOCKING
Quadruple locking latches
VISIBLE ALUMINIUM
105mm
ΜAXIMUM WEIGHT
200Kg/ vent
MAXIMUM HEIGHT
4,0 m
MAXIMUM PANEL WIDTH
1,5 m
Performance
WATER TIGHTNESS
7Α / 9Α (with subsill), IFT
AIR PERMEABILITY
class 4, IFT
WIND LOAD RESISTANCE
class C3/B3, IFT
BURGLAR RESISTANCE
RC2 IFT & PAS24 (UK)
ΤHERMAL PERFORMANCE
1.1 W/m²K, IFT
PANEL TYPE
bottom slide
Typologies

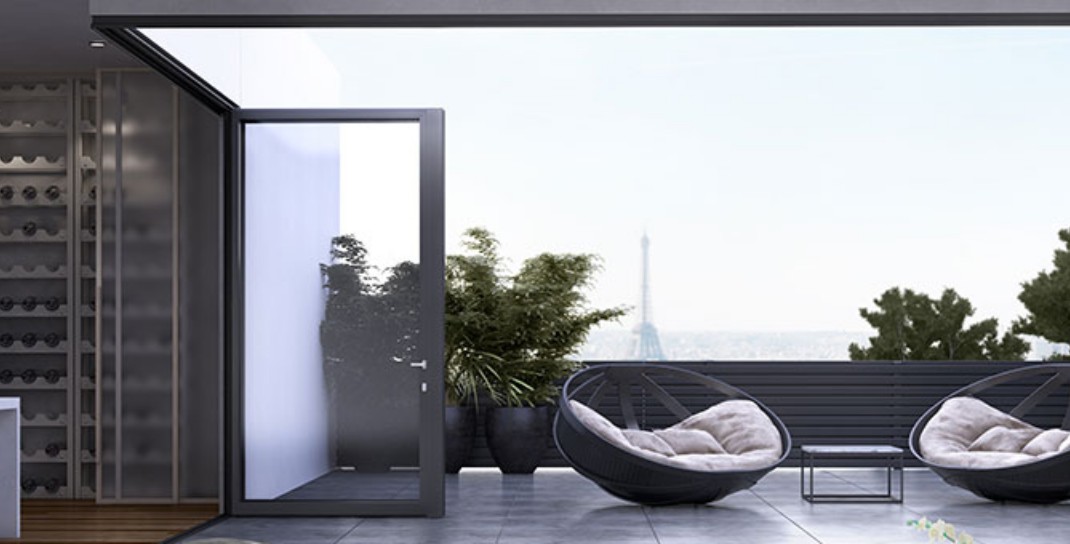

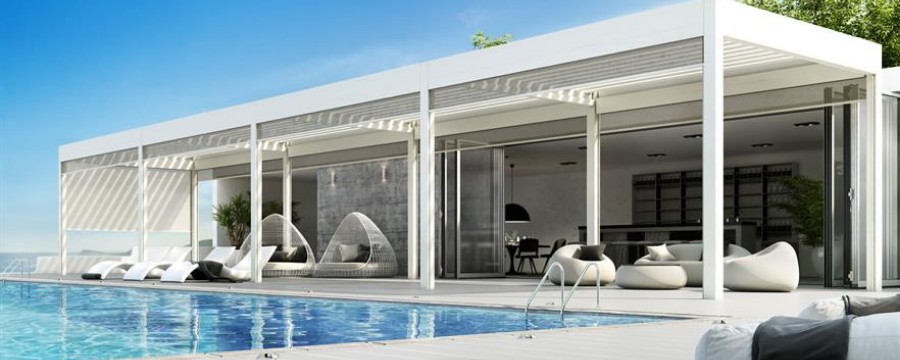

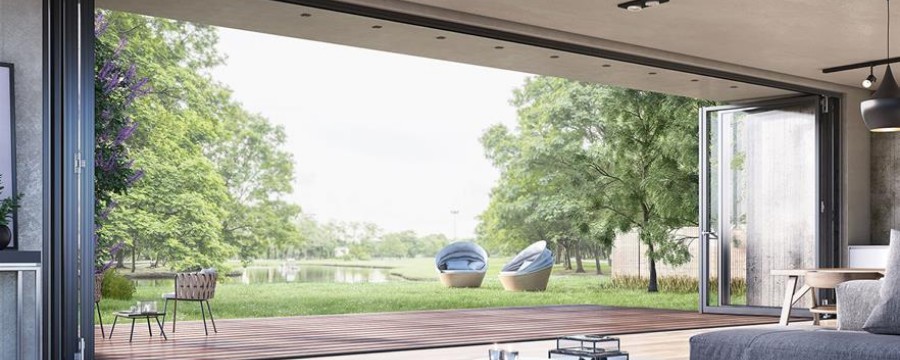

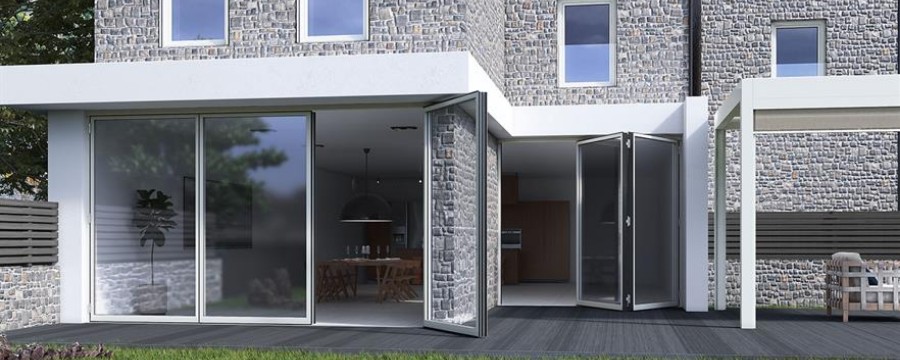

Media Gallery

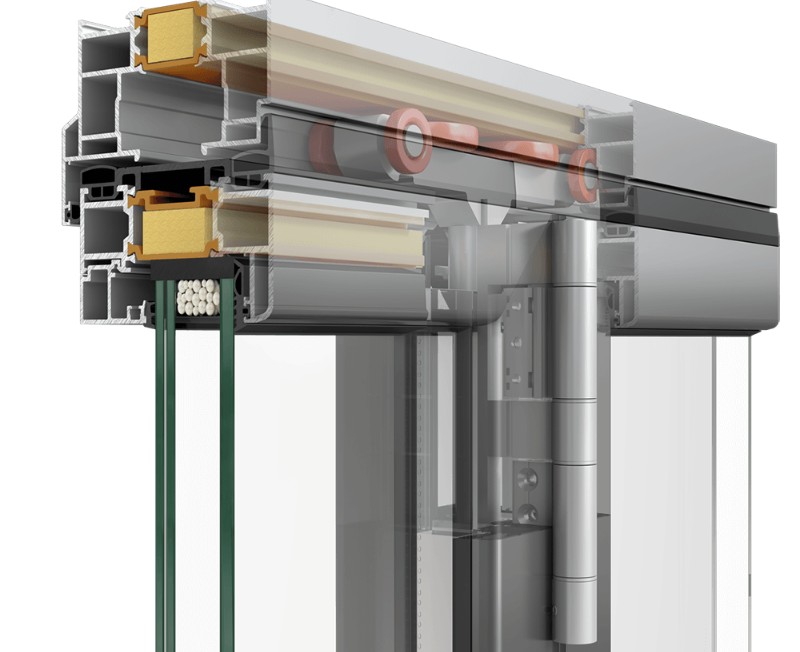

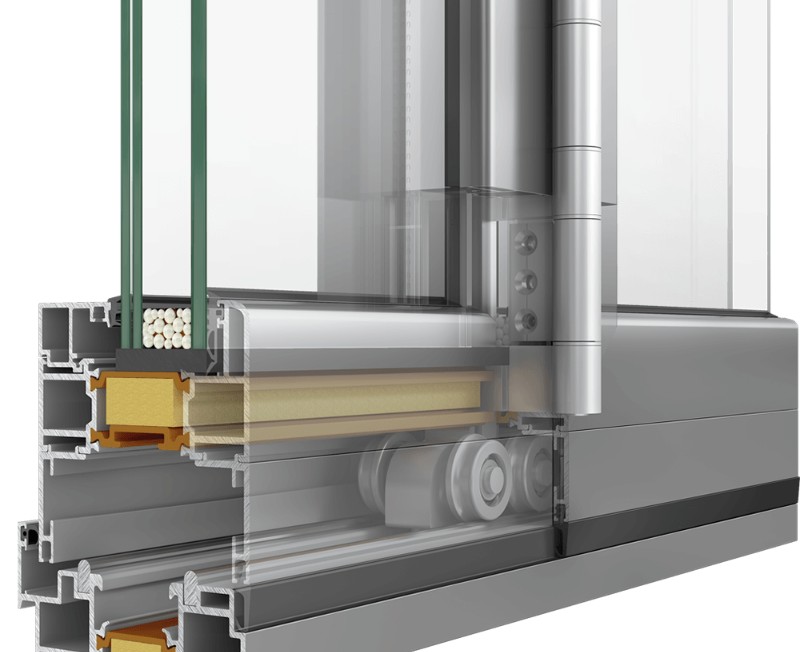

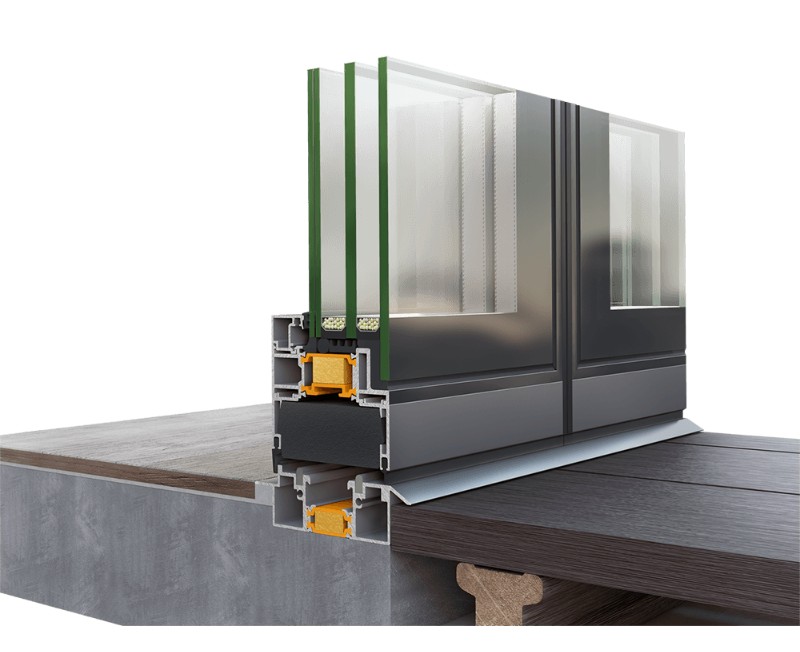

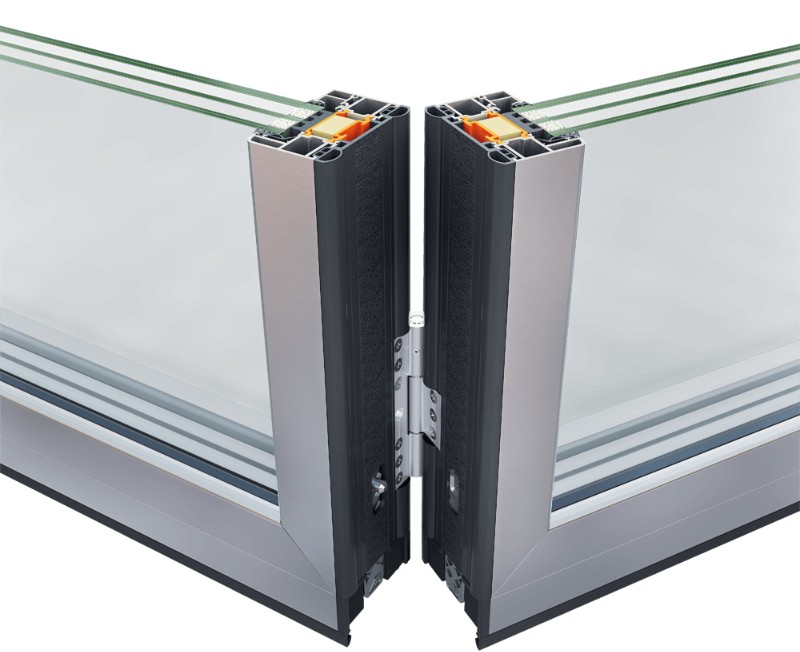

Sections
