Supreme Systems
The SUPREME Systems embody ALUMIL's cutting-edge technology, marking the dawn of a new era in their top-of-the-line systems. They provide an exceptional solution for projects that have rigorous specifications and align with the growing trend of "transparent" architecture, characterized by extensive use of glass surfaces.

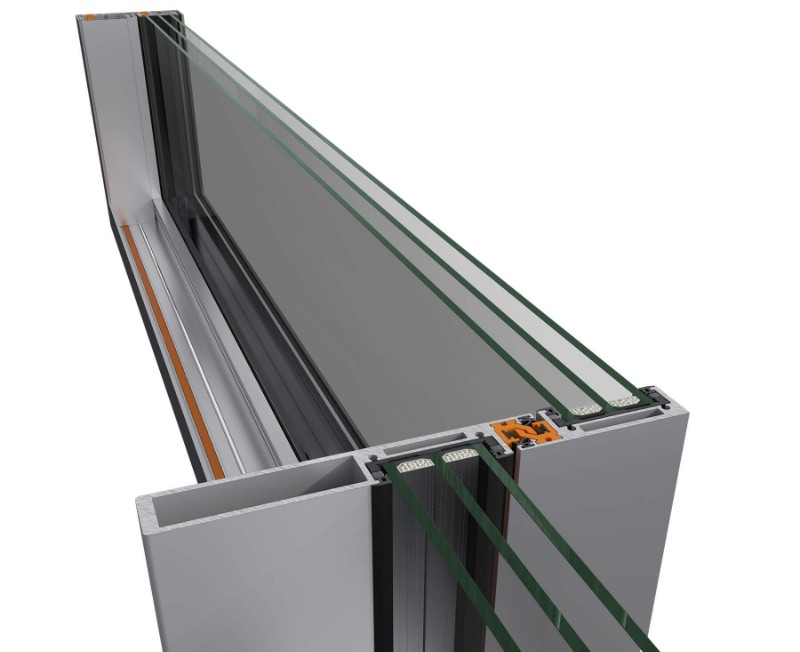

ALUMIL SUPREME S650 PHOS Insulated
Description
The thermally insulated sliding system SUPREME S650 PHOS is the ideal solution for projects requiring wide spans with minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.
Advantages
-
Differentiation in the market through high-end systems that follow the modern architectural trends
-
Increased clientele thanks to high-end products
-
Exceptional quality with certified performances
-
Wide variety of typologies
-
Specifications for people with special needs
-
Ideal for wide spans
-
Special hotels solutions
-
Maximum ease of use and high functionality
- Increased static loads and functionality in case of severe weather conditions
Generic
WINDOW TYPES
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat
Characteristics
GLAZING TYPE
Triple
WIND LOAD RESISTANCE
C2
AIR PERMEABILITY
4
TYPES OF TYPOLOGY

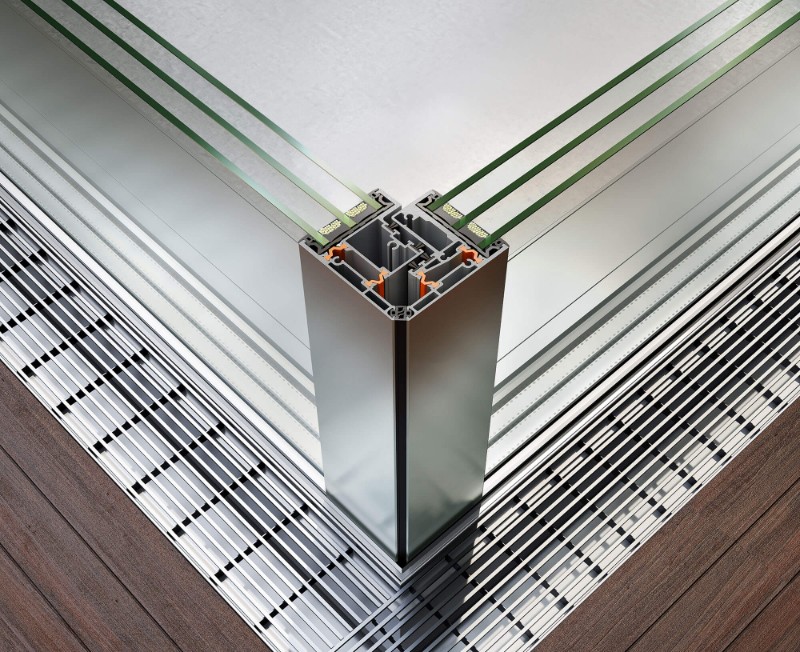

Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typo
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
MECHANISM
ALUMIL
SASH DEPTH
62 mm
SASH WEIGHT
up to 600 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
WATER TIGHTNESS
9A
BURGLAR RESISTANCE
RC2
MAXIMUM GLAZING THICKNESS
46 mm
TYPE OF THERMAL INSULATION
Polyamides, PVC
SEALING METHOD
Perimetrical with tri-fin brushes
Uw
1,1 W/m²K
Typologies
Media Gallery

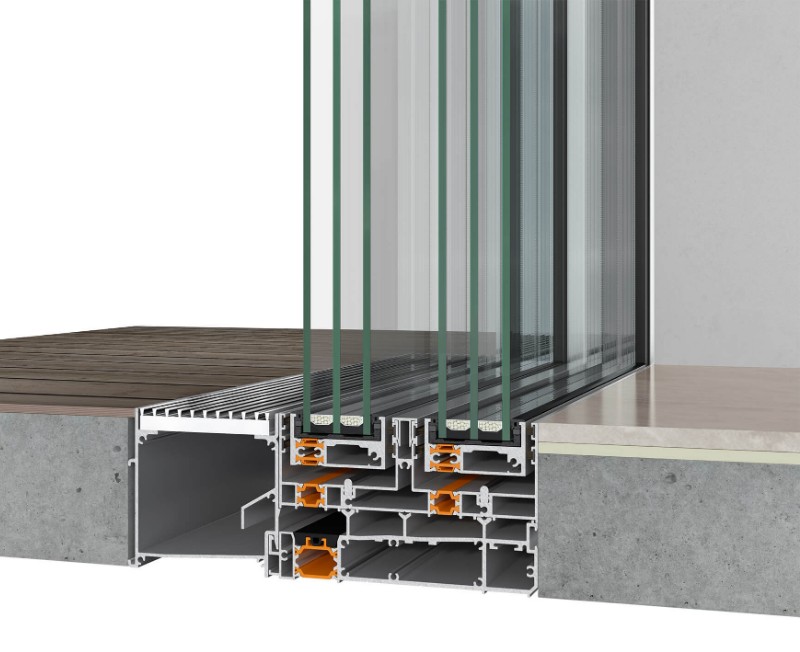

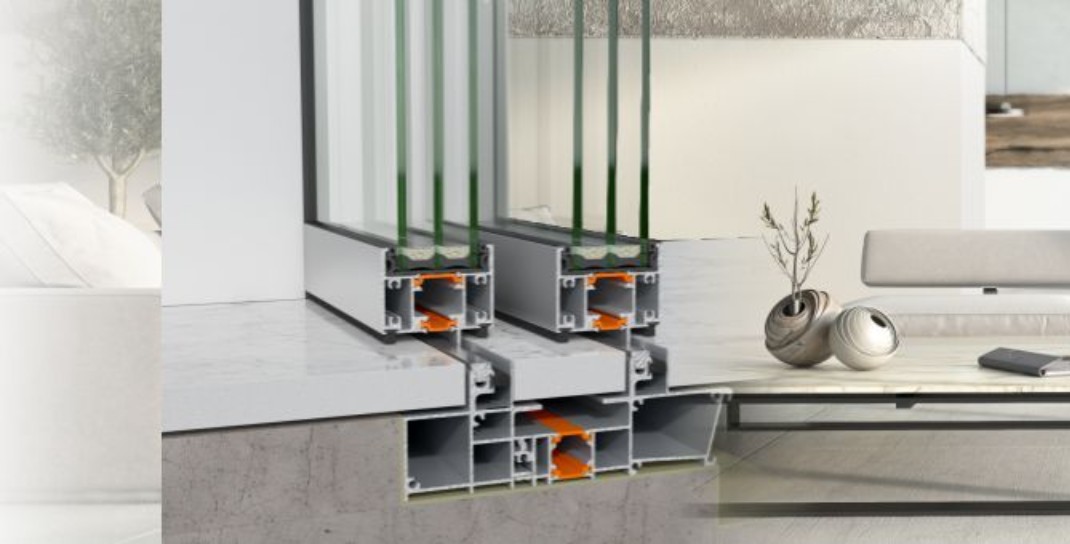

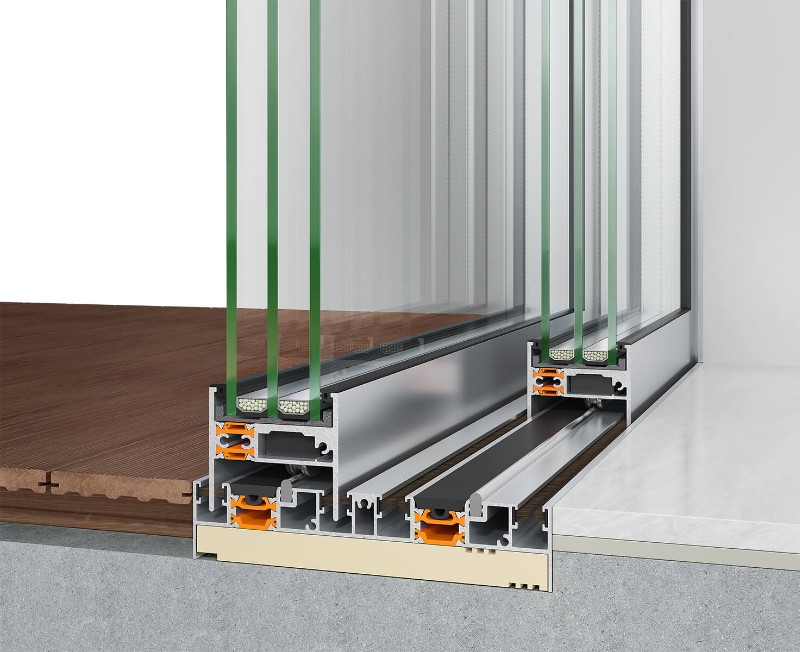

Sections
