Curtain Walls

ALMANAR presents a diverse range of Curtain Walling Systems that cater to various applications. These systems offer specifiers the flexibility to customize the building envelope's aesthetics while benefiting from the seamless integration of an all-in-one aluminum system. This ensures that both design and construction aspects are harmoniously incorporated, delivering a unified and efficient solution.

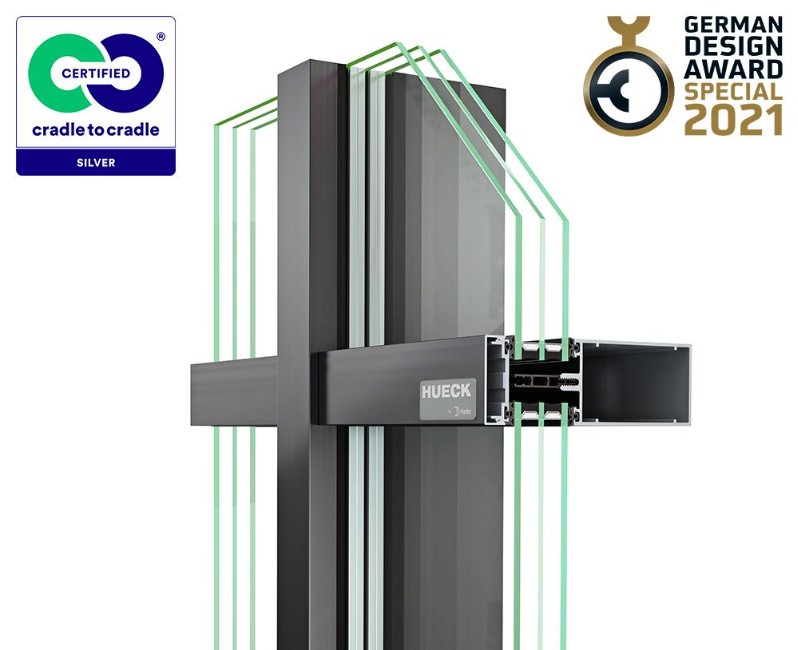

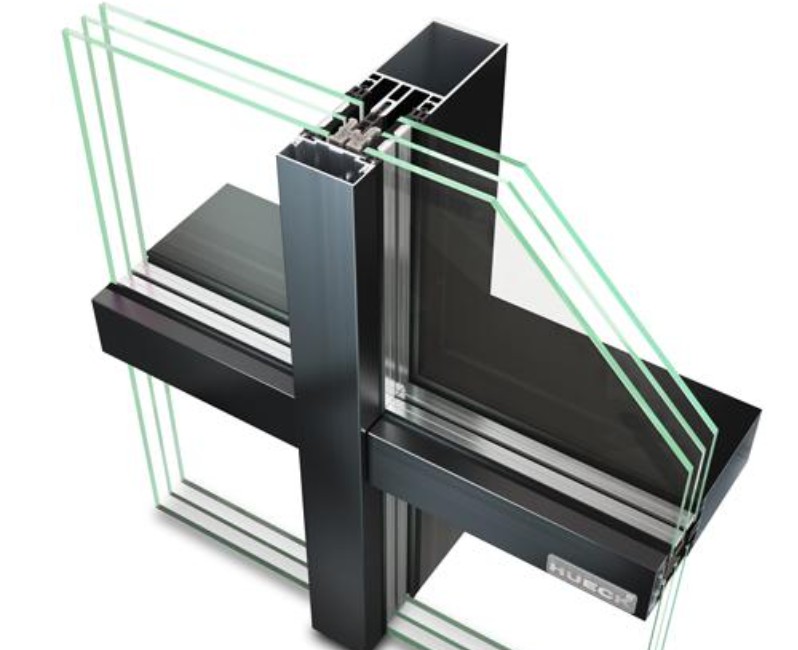

HUECK TRIGON 50 SG

Description

The HUECK Trigon 50 SG façade system offers advanced thermal insulation, high security, and excellent sound insulation, making it an ideal choice for modern architectural projects. Its all-glass design with a slim elevation width ensures a sleek and contemporary aesthetic, while the large maximum pane size provides expansive views and natural light.

Advantages

  • Elevation width: 50 mm
  • Maximum pane size: 3000 mm x 5000 mm
  • Thermal insulation: Uf up to 0.81 W/m²K
  • Airborne sound insulation: up to 45 dB
  • All-glass façade construction with 22 mm silicone weather joint for vertical or polygonal curtain walls
  • European Technical Approval: ETA-22/0339
  • Easy glazing assembly with patented self-clamping toggle
  • Mullion and transom profile elevation width: 50 mm
  • Profile depth: 27 mm to 250 mm, depending on static requirements and level
  • Insulation variants to meet different thermal requirements:

Characteristics

EXTERIOR VISIBLE WIDTH 50mm
MULLION DEPTH between 32 and 194 mm
TYPE OF THERMAL INSULATION Glass fiber-reinforced polypropylene
SEALING METHOD Vulcanised shaped gasket pieces covering the entire joint area are used in the transom connection ar

Performance

WATER TIGHTNESS RE1200 (EN 12154)
AIR PERMEABILITY 4A (EN 12152)
WIND LOAD RESISTANCE 2400 / 3600 Pa (EN 13116)
SOUND REDUCTION Rw,P up to 45 dB (EN ISO 140 – 3)
