Curtain Walls

ALMANAR presents a diverse range of Curtain Walling Systems that cater to various applications. These systems offer specifiers the flexibility to customize the building envelope's aesthetics while benefiting from the seamless integration of an all-in-one aluminum system. This ensures that both design and construction aspects are harmoniously incorporated, delivering a unified and efficient solution.

ALUMIL SMARTIA M35

Description

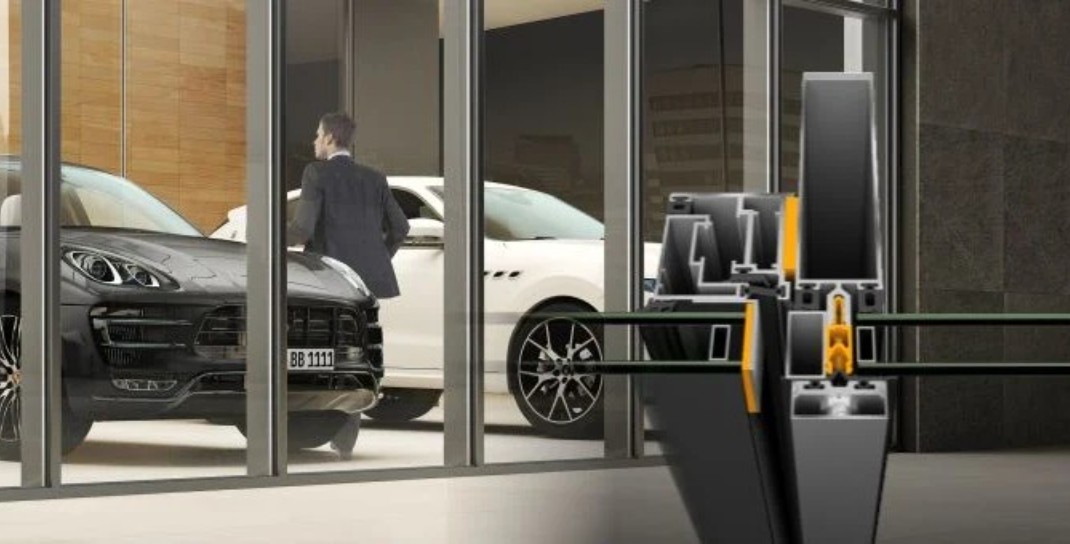

SMARTIA M35 is a cost-effective curtain wall system that excellently merges aesthetics with high performance.

With a minimal design featuring a reduced sightline of 35mm—narrower than typical curtain wall systems—SMARTIA M35 is perfect for Transparent Architecture.

Advantages

  • Enhancement of natural light

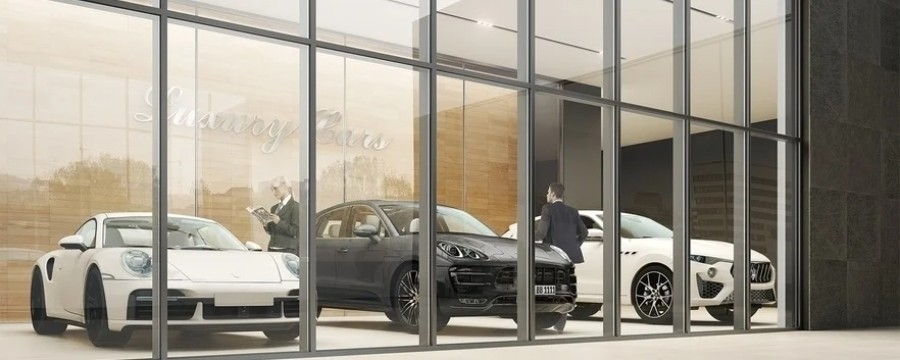

  • Ideal for constructions needing a minimal look, such as shopfronts
  • Excellent energy efficiency
  • Certified performance in air, water tightness, and wind pressure resistance
  • Increased static robustness, even under extreme natural conditions
  • Supports various hinged typologies: projected, parallel projected, and tilt-and-turn windows
  • Stands out from the competition
  • Compatible with sliding typologies

Generic

EXTERIOR SHAPES Fixed, Projected, Parallel Projected, Tilt and turn

Characteristics

EXTERIOR VISIBLE WIDTH 35MM
MULLION DEPTH 50 up to 200mm
MAXIMUM GLAZING THICKNESS 4mm up to 54mm

Performance

WATER TIGHTNESS RE 1050
WIND LOAD RESISTANCE Design Load ± 1,6KN/m², Safety Load ± 2,4KN/m²
TYPES OF TYPOLOGY Fixed, Projected, Parallel Projected, Tilt and turn
