Aluminium Bi-Fold doors
Our aluminium folding door systems combine the strength and lightweight properties of aluminium with form and function of the highest standard. Highly versatile and configurable, they offer maximum control over the style and operation of the doors.
ALUMIL SMARTIA M19800 Insulated
Description
SMARTIA M19800 is an insulated folding door system with top-hung operation and suitable for normal and large constructions. It offers sturdy and elegant solutions applied to middle and high-end projects, such as luxury residences, office buildings, conference centers, hotels, restaurants and many other.
Advantages
-
Large dimensions and wide spans
-
Sturdy structure with flawless and long-lasting operation
-
High thermal insulation and energy saving
-
High performance in terms of wind resistance, air permeability and water tightness
- Easy machining and installation
Generic
AESTHETICS
relatively low sight line
THERMAL INSULATION
Yes
APPLICATIONS
modern residences, office buildings, conference centers, hotels, restaurants
PANEL
aluminium framed panel with glazing bead
Characteristics
SASH WIDTH
50 mm
GLAZING
24-32 mm
POLYAMIDE
Double 18mm
MAIN GASKET
Double EPDM
LOCKING
double locking latches
VISIBLE ALUMINIUM
143m
ΜAXIMUM WEIGHT
125Kg per vent
MAXIMUM HEIGHT
2.8m
MAXIMUM PANEL WIDTH
1.1m
Performance
UF
1.9 W/m²K
WATER TIGHTNESS
4A, IFT
AIR PERMEABILITY
cl. 3, IFT
WIND LOAD RESISTANCE
C1/B1, IFT
PANEL TYPE
top-hung operation

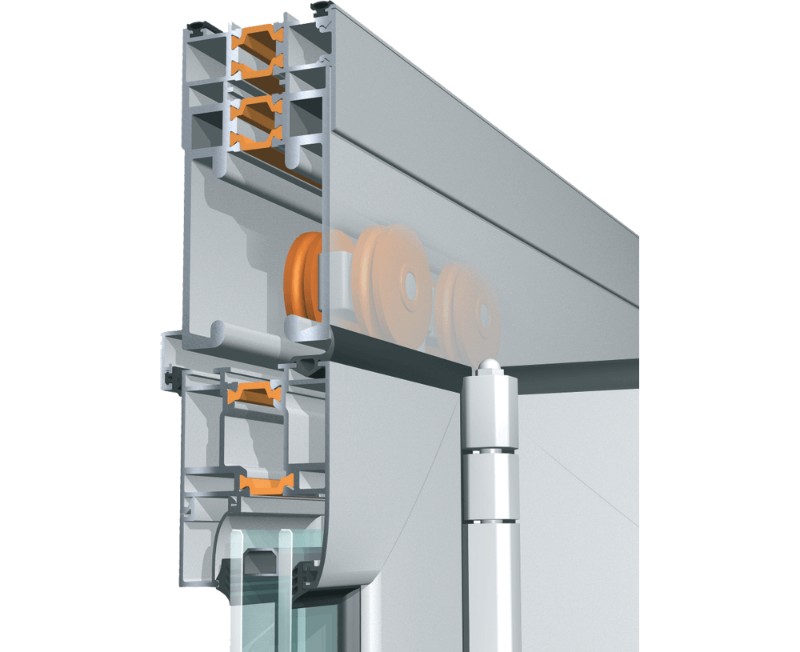

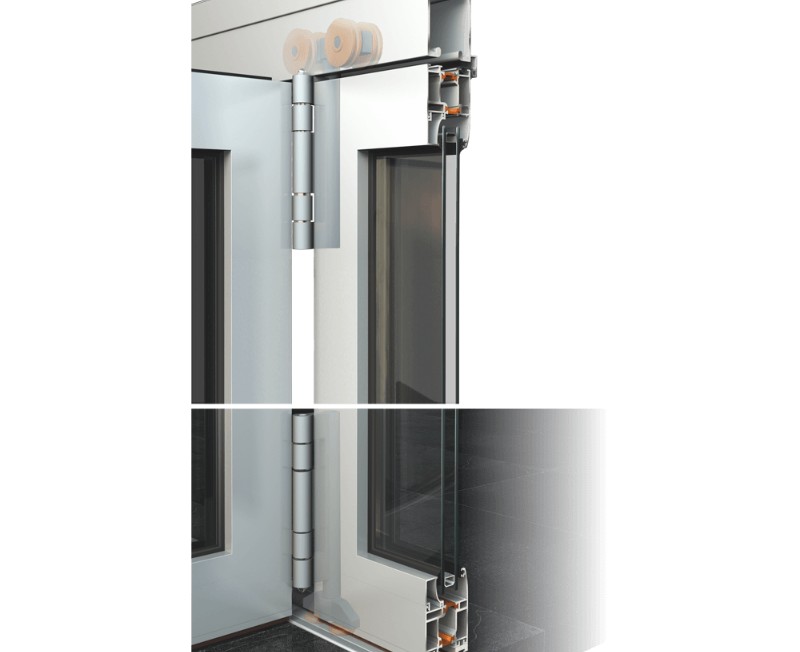

Sections
