Hinged Doors & Windows
We offer a comprehensive selection of Hinged systems that cater to various projects and building types, encompassing residential, commercial, traditional, and contemporary applications. Our range includes different types of Side-hinged or Tilt & Turn doors and windows, all engineered to deliver supreme performance. Regardless of the specific requirements, our Hinged systems provide reliable and high-quality solutions for any construction project.

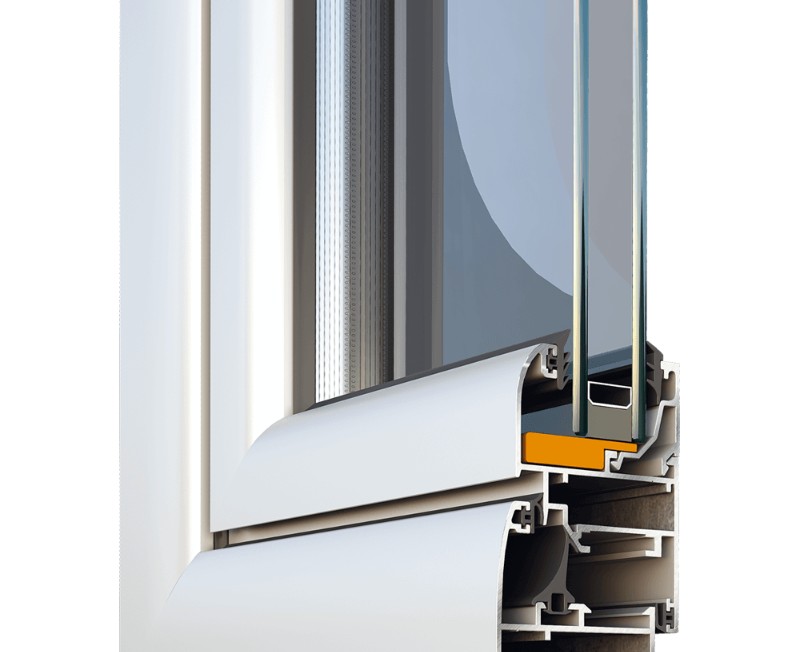

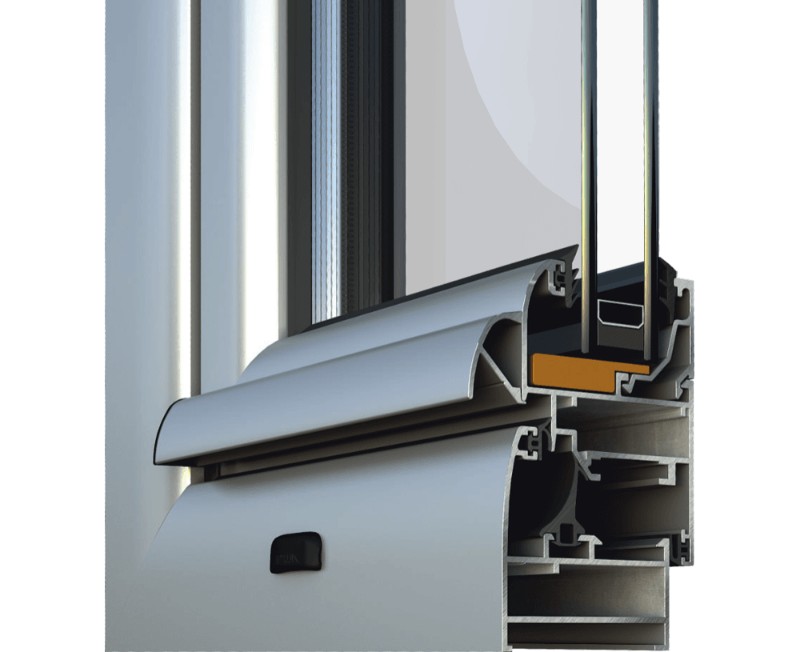

ALUMIL COMFORT M940 Non-Insulated
Description
COMFORT M940 is an economical and lightweight non-insulated system for tilt & turn casements without compromising performance and is available in a variety of solutions.
Advantages
-
Very good value for money
-
Flexibility in construction
-
Wide variety of typologies
-
Solutions for small spans
-
Special hotel solutions
- Saving construction time
Generic
WINDOW TYPES
Hinged
THERMAL INSULATION
No
EXTERIOR SHAPES
Classic, Curved, Flat
Characteristics
MAXIMUM GLAZING THICKNESS
From 4 mm up to 24 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
81,7 mm
FRAME DEPTH
37 mm
SASH WEIGHT
up to 130 Kg
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
131 mm
TYPES OF TYPOLOGY
For all tilt & turn typologies
MECHANISM
Euro-groove
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
GLAZING TYPE
Single - Double
Typologies
Media Gallery
Sections
