Hinged Doors & Windows
We offer a comprehensive selection of Hinged systems that cater to various projects and building types, encompassing residential, commercial, traditional, and contemporary applications. Our range includes different types of Side-hinged or Tilt & Turn doors and windows, all engineered to deliver supreme performance. Regardless of the specific requirements, our Hinged systems provide reliable and high-quality solutions for any construction project.
ALUMIL SMARTIA M11000 Insulated
Description
SMARTIA M11000 is a Tilt & Turn insulated hinged system that can meet the most demanding needs thanks to a large variety of solutions and designs
Advantages
-
High value for money
-
High energy savings due to the high energy efficiency of the system
-
Special solutions for Hotels
-
Wide variety of solutions
-
Increased level of security
-
High level of sound insulation
-
Ease of use and high functionality
-
Modern design for windows either with flat or curved line
-
Enhanced natural light thanks to the ability to use hidden sash
-
High quality with certified performance
- Increased static loads and functionality in case of severe weather conditions
Generic
WINDOW TYPES
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Classic, Curved, Flat
Performance
UF
from 2,3 up to 2,9 W/m2K
AIR PERMEABILITY
Class 4
MECHANISM
Euro-groove, Euro-nut
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
61 mm
MAXIMUM GLAZING THICKNESS
20 up to 59 mm
TYPES OF TYPOLOGY
For all tilt & turn typologies
SOUND REDUCTION
47 dB
WATER TIGHTNESS
Ε900
SASH WEIGHT
up to 180 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
70 mm
SASH DEPTH
70 mm
FRAME DEPTH
62,5 mm
GLAZING TYPE
Single - Double - Triple
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
TYPE OF THERMAL INSULATION
Polyamides 24 mm & 20 mm
Typologies
Media Gallery

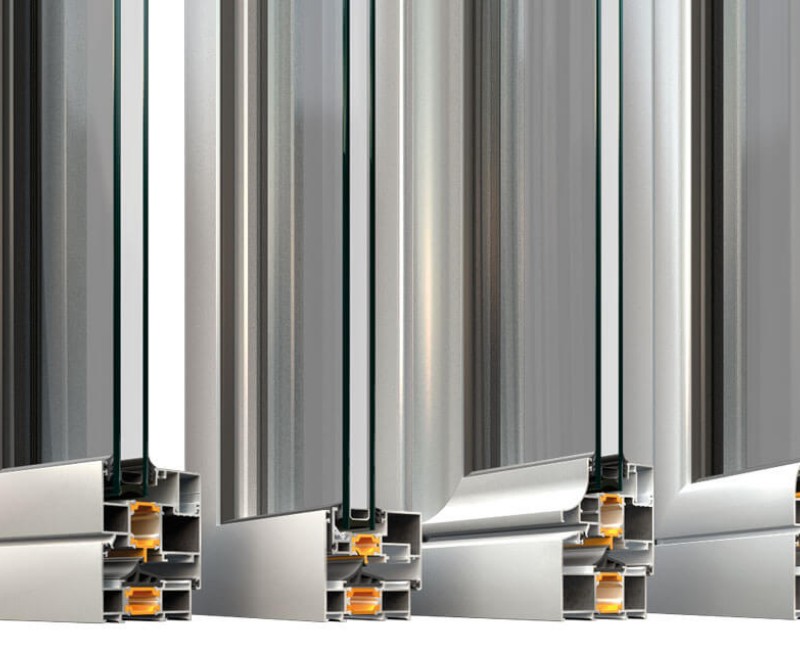

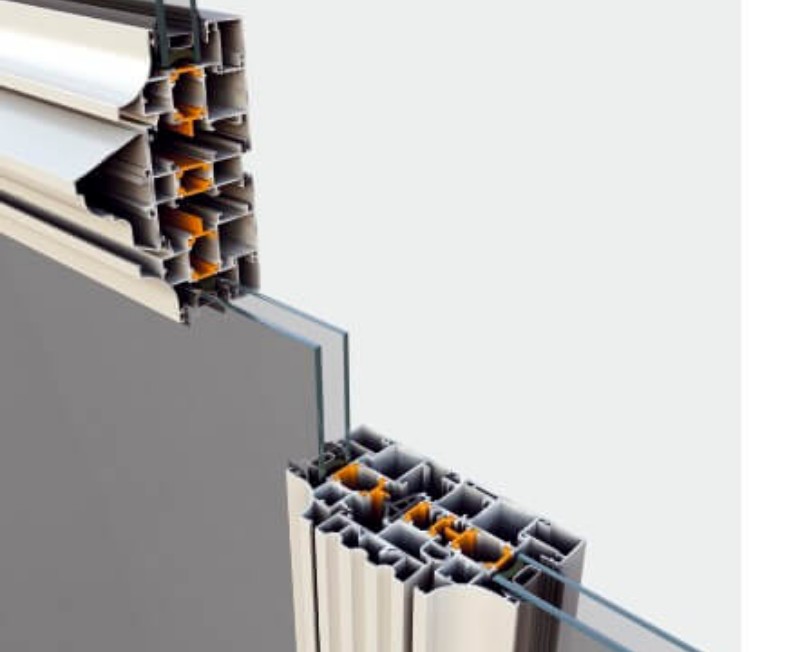

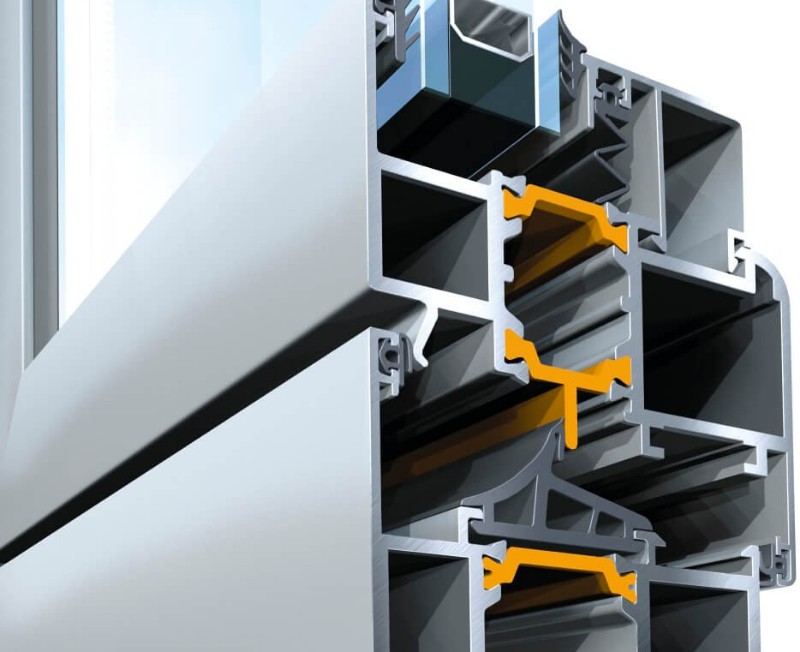

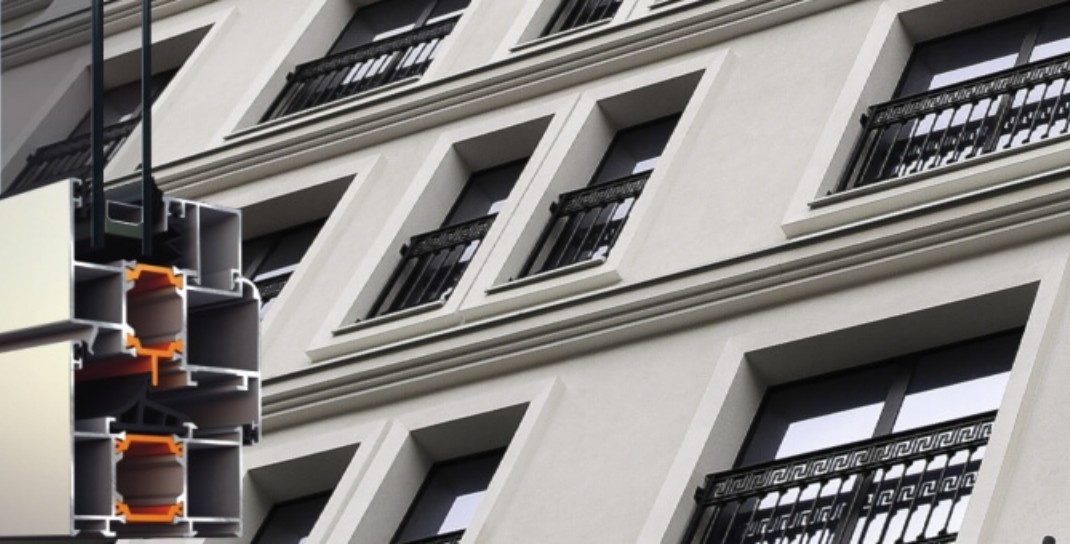

Sections
